Product Overview

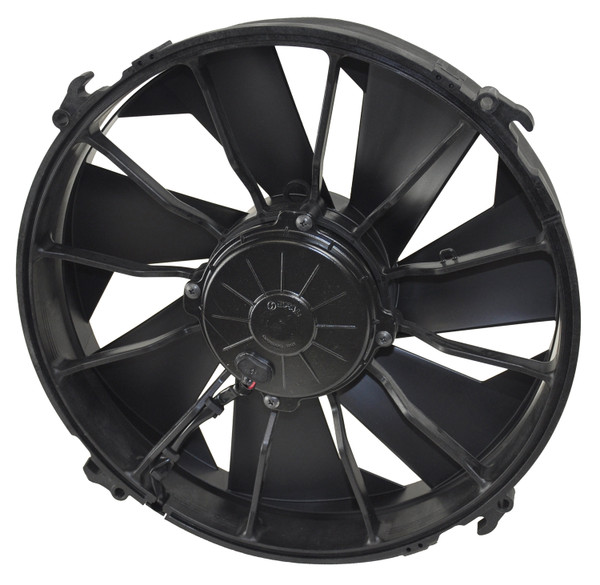

This 12" High Output Single RAD fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 300 watt motor driving 7 skewed blades, it can be used as a pusher with the supplied hardware kit. Fan can also be used as puller by combining with a custom built shroud. Moves 2000 CFM while drawing up to 24.8 amps.
Features & Benefits:
- 12" High Output Single RAD Pusher/Puller Fan with Standard Mount Kit
Associated Comments:
- State-of-the-art symmetrical design
- High Output 300 watt motor
- 2000 CFM
- Mounts as pusher (grill side). Can be used in puller application when custom shroud is used
- Includes nylon mounting hardware and rubber isolators
Additional Attributes:
- GTIN: 00083277169243
- Amp draw: 24.8
- CFM: 2000
- Color: Black
- Depth: 2-3/8
- Height: 13-1/8
- Mounting: 9-3/8 x 9-3/8
- Overall depth: 3-1/2
- Width: 13-1/8
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 19 x 17.25 x 4.5 inches
16924 REV A
