Product Overview

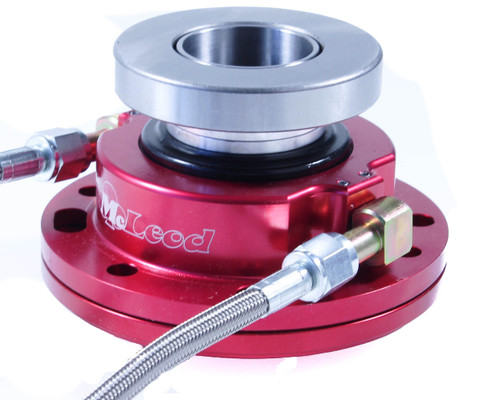

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.
Features & Benefits:
- The 1300 Series Hydraulic Bearing. These units bolt in replacement of the factory bearing retianer when your "A" dimension is less than 3"
Additional Attributes:
- GTIN: 00887753015983
- "A" Dimension: 2.99In. or Less
- Bearing Face ID: 1.59In.
- Bearing Face OD: 3.0In.
- Bore Size: 0.750In.
- Height 1 Spacer: 2.590In.
- Height 2 Spacers: 2.740
- Height 3 Spacers: 2.890In.
- Master Cylinder: Universal
- NOTE:: This kit comes with a universal master cylinder that is not specific to any firewall. Customer is responsible for engineering and fabricating master cylinder mount with a 6:1 pedal ratio for proper pedal feel and stroke.
- Output Port Thread: 1/8In. NPT
- Stock Collar I.D.: 4.850In.
- Stroke: 1.2In.
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 13.25 x 5.5 x 3.25 inches
