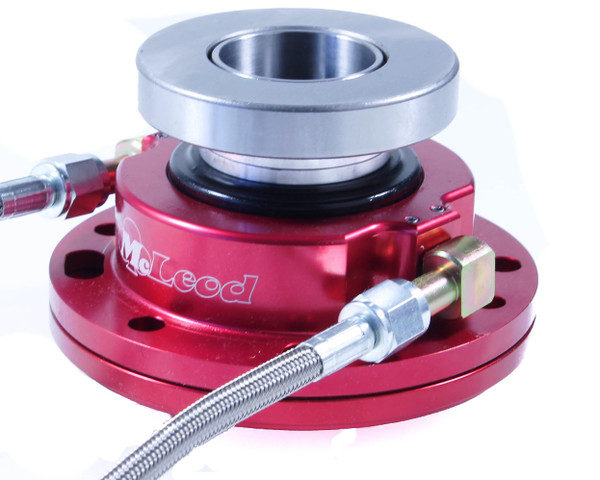

1300 Series Hydraulic Bearing: GM:Auto Gear Muncie M23: "A" 2.50"-2.99" - 1300-AG

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your OEM Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.

Additional Attributes:

• GTIN: 00887753018649
• "A" Dimension: 2.99In. or Less
• Bearing Face ID: 1.59In.
• Bearing Face OD: 3.0In.
• Height 1 Spacer: 2.590In.
• Height 2 Spacers: 2.740In.
• Height 3 Spacers: 2.890In.
• Spline: 1 1/8In. x 26, 1-1/8In. x 10
• Stock Collar I.D.: 4.680In.
• Transmission: Auto Gear Muncie M23

Extended Information:

• Emissions : 1
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 6 inches
