Product Overview

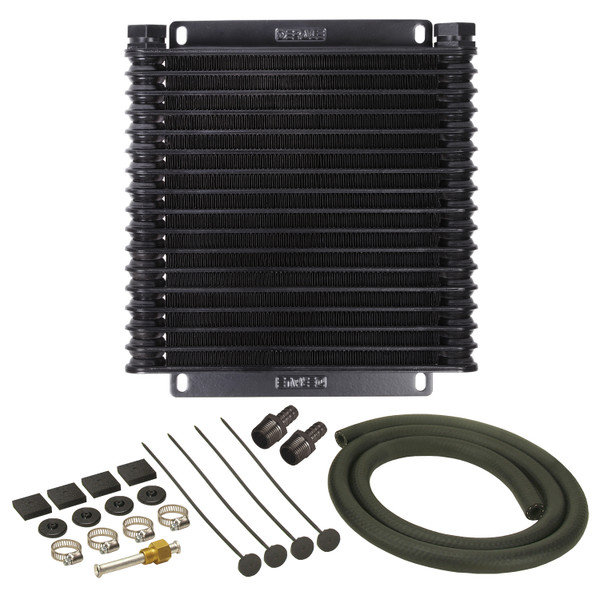

Very popular with original equipment manufacturers for use on their towing applications, our Plate and Fin coolers is no exception, featuring strong furnace-brazed construction, 1 1/4" wide plates and embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 1/2" NPT female cooler ports and includes 1/2" NPT x 3/8" hose barb adapters. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.
Features & Benefits:
- 17 Row Series 9000 Plate & Fin Transmission Cooler Kit, 1/2" NPT
Associated Comments:
- Prevents heat related transmission failures
- Complete hardware kit included
- Fluid Capacity: 12 oz.
- 23500 BTU
- Extends life of transmission
- Improves transmission performance
- Sturdy furnace-brazed aluminum construction
- 17 row cooler design
- 1-1/4" turbulators maximize cooling & minimize pressure drop
- New 1/2" NPT female cooler fittings
- 1/2" NPT x 3/8" hose barb adapters included
- 24000 GVW rated
Additional Attributes:
- GTIN: 00083277136146
- BTU: 23500
- Color: Black
- Cooler style: Plate & Fin
- Depth: 1-1/4
- Fitting size: 3/8 barb
- GVW: 24000
- Height: 10-5/8
- Hose length: 4
- Hose size: 3/8
- Inlet dim: 8-1/2
- Inlet size: 1/2 NPT female
- Material: Aluminum
- Mounting: 6-11/16 x 9-13/16
- Width: 9-3/4
Extended Information:
- Emissions : 4
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 18.625 x 13 x 2.125 inches
