Product Overview

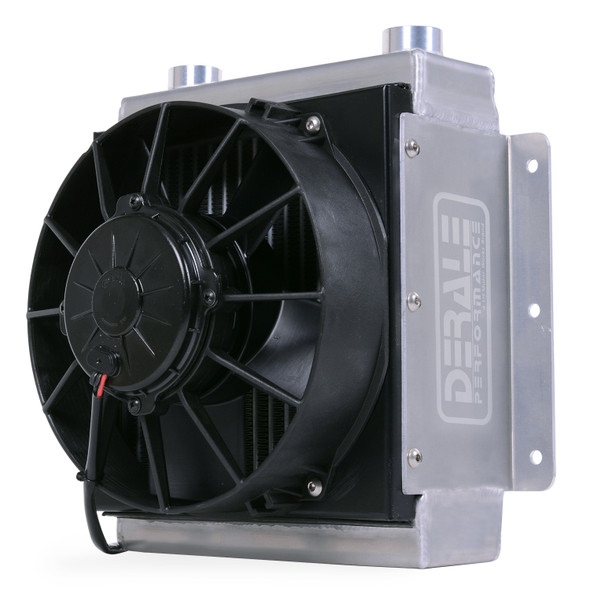

Derale is proud to introduce our latest addition to the remote cooler lineup. This 18 Row Hi-Flow Racing Cooler is precision TIG welded and features the most efficient tube design in the aftermarket, which supports up to 350 PSI with minimal pressure drop. Mounted 8" Electric fan is IP68 certified (Water/Dust Proof) and designed to do its best under the most strenuous conditions. Perfect for everything from Drag racing to Off-Road.
Features & Benefits:
- 18 Row Hi-Flow Racing Remote Fluid Cooler with Single Fan, 7/8-14 UNF O-ring
Associated Comments:
- Electric fan supplies optimum airflow
- 125,000 BTU's Per Hour
- Cooler is rated at 350psi working pressure
- Cooler assembly includes fan mounted cooler
- Dramatically extends engine or transmission life
- High Flow cooler
- Black anodized aluminum shroud
- Mounts anywhere space permits
- 9" waterproof/dustproof electric fan
- 755 CFM
- Ideal for severe duty conditions
- 7/8-14 Oring
Additional Attributes:
- GTIN: 00083277658600
- AMP Draw: 10
- BTU's Per Hour: 125,000
- CFM: 755
- Depth: 8 1/2"
- Fan size: 9"
- Height: 12 3/8"
- Inlet(s) size: 7/8"-14 UNF O-ring
- Mounting: 6 3/4" x 7 3/16"
- Width: 11 7/8"
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 17 x 13 x 9.5 inches
65861 REV A
