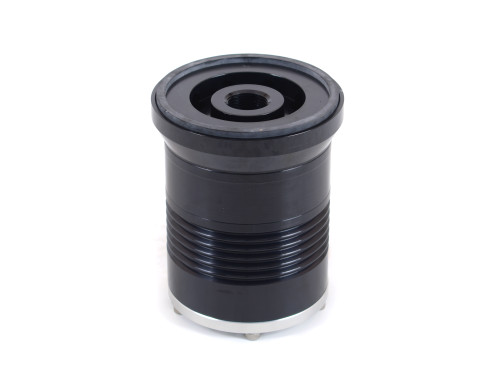

25-564 Oil Filter 6" Billet Aluminum Spin-On 13/16" -16 Thread Large O-Ring - 25-564

This 6" tall billet spin-on filter has 13/16"-16 threads and a large size 3-1/4" o-ring. Like all CM filters it features a billet aluminum body built for strength and durability for a lifetime of use. Heat sink ribs add to filter's functionality and aggressive aesthetic. The filters bottom cap is easily removed with four bolts for filter element inspection and replacement. A CM 4-5/8" tall synthetic fiber filter element which flows 45 GPM of hot engine oil with no loss of pressure and filters down to 8 microns comes preinstalled.

Features & Benefits:

• 6" tall billet spin-on filter has 13/16"-16 threads and a large size 3-1/4" o-ring
• 4-5/8" tall synthetic fiber filter element flows 45 GPM of engine oil with no loss of pressure
• Features a billet aluminum body for strength and durability
• Heat sink ribs add to filters functionality and aggressive aesthetic
• Bottom cap is easily removed with four bolts for filter element inspection and replacement
• Made in the USA

Associated Comments:

• -

Additional Attributes:

• GTIN: 00887753830869
• Thread Size: 13/16" -16

Extended Information:

• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 10 x 6 inches

PDF:
