Product Overview

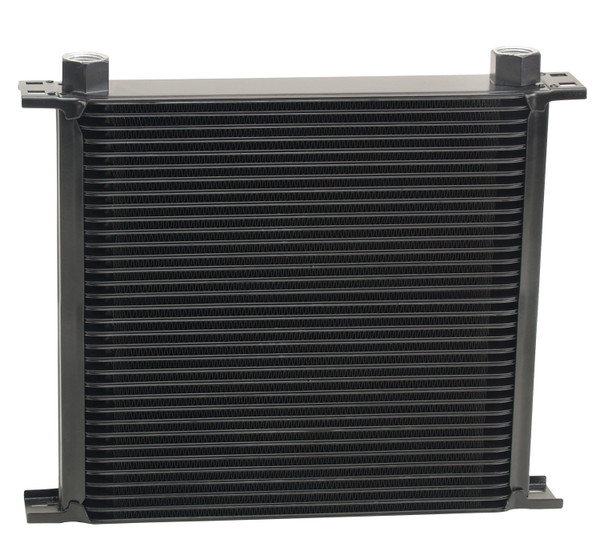

Our most efficient heat exchanger, the all aluminum 34 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish with -10AN (7/8-14) O-ring inlets and outlets. With minimal pressure drop it can be used for engine, transmission or fuel cooling.
Features & Benefits:
- 34 Row Series 10000 Stack Plate Fluid Cooler, -10AN O-ring Female
Associated Comments:
- Designed for engine and transmission cooling
- Most efficient heat exchangers available
- Furnace brazed aluminum construction with 4 integrated mounting brackets
- 34 row cooler design
- Female -10AN O-ring inlets
- 59,000 BTU's Per Hour
Additional Attributes:
- GTIN: 00083277534782
- BTU's Per Hour: 59000
- Color: Black
- Cooler style: Stacked Plate
- Depth: 2
- Height: 10-7/8
- Inlet dim: 10
- Inlet size: -10AN o-ring female x -10AN male
- Material: Aluminum
- Mounting: 12-1/4 x 10-1/16
- Width: 13
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 18.625 x 13 x 2.125 inches
