Product Overview

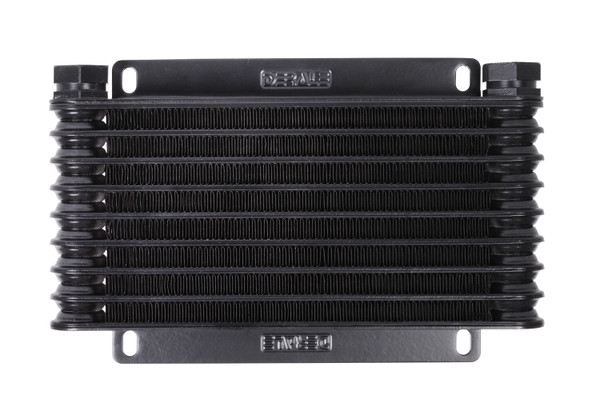

Very popular with original equipment manufacturers for use on their towing applications, our Plate and Fin coolers is no exception, featuring strong furnace-brazed construction, 1 1/4" wide plates and embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 1/2" NPT female cooler ports and includes 1/2" NPT x 3/8" hose barb adapters.
Features & Benefits:
- 9 Row Series 9000 Plate & Fin Cooler, 1/2" NPT
Associated Comments:
- Prevents heat related transmission failures
- Fluid Capacity: 6 oz.
- Cooler Only
- Extends life of transmission
- Improves transmission performance
- Sturdy furnace-brazed aluminum construction
- 9 row cooler design
- 1-1/4" turbulators maximize cooling & minimize pressure drop
- New 1/2" NPT female cooler fittings
- 1/2" NPT x 3/8" hose barb adapters included
- 14000 BTU
Additional Attributes:
- GTIN: 00083277336027
- BTU: 14000
- Color: Black
- Cooler style: Plate & Fin
- Depth: 1-1/4
- Fitting size: 3/8 barb
- GVW: 18000
- Height: 6-1/4
- Inlet dim: 8-1/2
- Inlet size: 1/2 NPT female
- Material: Aluminum
- Mounting: 6-11/16 x 5-1/2
- Width: 9-3/4
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 13.375 x 11.75 x 2 inches
