Product Overview

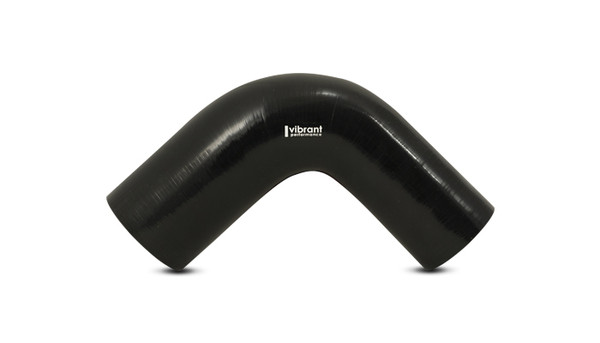

Vibrant Performance Aramid Reinforced Silicone 90 Degrees Transition Elbows feature High Temperature Resistant Aramid Reinforcement Fabric between each layer of silicone which allows for an impressive Operating Temperature Range of -75 Degrees F to 392 Degrees F (-60 Degrees C to 200 Degrees C). These elbows are intended for use in applications where pressurized tubing and connection points require a tight radius bend and size transition to accommodate the installation of piping in limited space. Not suitable for use with Oil/Fuel.
Features & Benefits:
- Capable of withstanding extreme temperatures and heavy duty pressure conditions without swelling or bursting
- Hand wrapped and feature 4-ply reinforcement
- Meets or exceeds SAE J20 specifications
- Rated for temperatures ranging from -65 F to 350 F
- Suitable for coolant service
- UV and Ozone resistant
Additional Attributes:
- GTIN: 00690092190101
- Add-On: N/A
- Centerline Radius: 4
- Color: Black
- Inlet I.D.: 3
- Leg Length From Tangent: 4
- Maximum Operating Pressure: 18
- Outlet I.D.: 4
- Sale Segment: Silicone Products
- Wall Thickness: 0.2
- Web Category: 4 Ply Aramid Reinforced Silicone Couplers
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 7.25 x 6 x 1 inches
