Product Overview

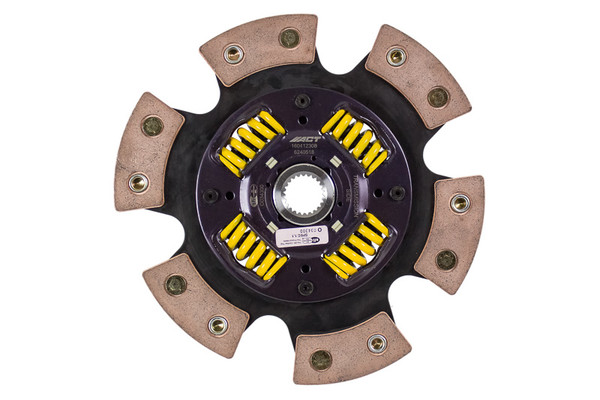

6240518 is a 6-pad spring-centered race discs made with high quality ceramic friction materials. The engagement is harsher, but shifting is faster. The heavy duty torsional dampening springs are stronger, in most cases, than standard springs and are provided in the best sizes and spring rates to suit the application. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat and for smoother engagement.
Features & Benefits:
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Associated Comments:
- Aggressive engagement, quick shifts, mild to moderate gear rattle; Premium ceramic friction materials provide moderate wear rates and high heat tolerance; Utilizes wraparound spring windows, thicker retainer stampings and a heat-treated, spring steel drive plate to provide support, reduce stress concentrations and increase strength and reliability; Recommended for high horsepower street or race use; High burst strength and holds 28% more torque than typical organic materials
Additional Attributes:
- GTIN: 00842385000509
- Diameter: 9.4
- Diameter: 240
- Spline Quantity: 24
- Grade Type: Performance
- Friction Plate: No
- Disc Material: Ceramic
- Splined Bore Diameter: 1
- Disc Type: Sprung
- Part Fitment Requirement: 240mm upgrade. Must be used with ACT 240mm pressure plate and flywheel (not included).
- Product Weight (lbs.): 3.9
- SFI: 1.1
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14 x 14 x 3 inches
