Product Overview

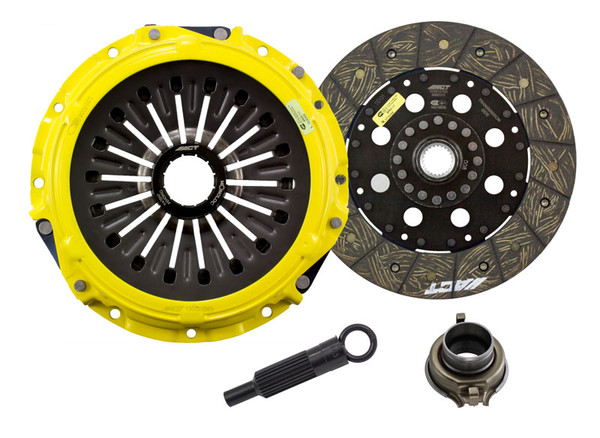

ME2-HDSD kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's Street rigid-hub discs provide race-proven performance with street manageability. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.
Features & Benefits:
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Associated Comments:
- Light to moderate pedal effort, smooth positive engagement, increased gear rattle, confidence during hard shifts; Longer friction life, extended by ACT's exclusive diaphragm design, dramatic improvement in release mechanism life, rigid design may increase spline wear; Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade, major improvement in release mechanism; Recommended for street and race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT's patented Monoloc
Additional Attributes:
- GTIN: 00842385021573
- Clutch Master Cylinder Included: No
- Grease Included: Yes
- Grade Type: Performance
- Flywheel Included: No
- Pilot Bushing Included: No
- Pressure Plate Type: Heavy Duty
- Release Bearing Included: Yes
- Clutch Disc Diameter: 9.4
- Clutch Disc Diameter: 240
- Disc Material: Organic
- Input Spline Quantity: 23
- Input Shaft Diameter: 1
- Alignment Tool Included: Yes
- Disc Type Sprung Solid: Solid
- Pressure Plate Bolts Included: No
- Clutch Slave Cylinder Included: No
- Flywheel Bolts Included: No
- Pilot Bearing Included: No
- Part Fitment Requirement: Includes ACT Monoloc.
- Product Weight (lbs.): 15.5
- Torque Capacity (ft/lbs.): 530
- Torque Capacity Over OE: 45%
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14 x 14 x 5 inches
ACT_General_Installation_Instructions
