Product Overview

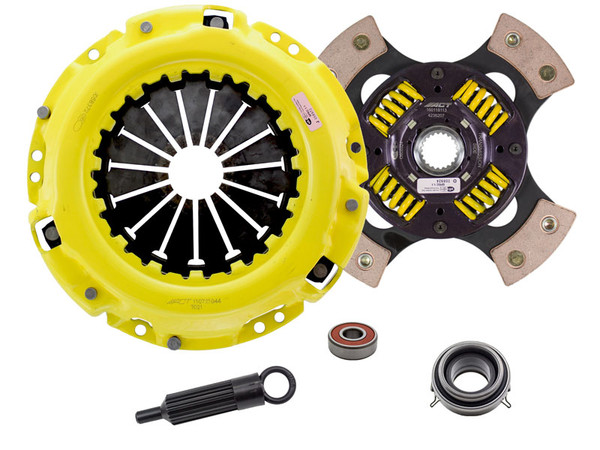

T43-HDG4 kit features ACT's highly regarded Heavy Duty pressure plate and spring-center 4 pad race disc delivering high torque capacity, aggressive engagement, quiet operation and increased toughness to withstand the demands of off-road racing. ACT’s exclusive diaphragm design increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT’s spring center 4 pad race discs boast quality parts throughout, with robust spring center sections to absorb driveline shock and premium ceramic friction materials to hold power even under the most abusive conditions.
Features & Benefits:
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Associated Comments:
- Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle, confidence during hard shifts; Moderate friction life, extended by ACT's exclusive diaphragm design, increased durability and heat capacity; Carefully engineered, precisely assembled, accurately balanced, uses premium ceramic friction materials for high heat tolerance and maximum performance, premium bearings and hardware; Recommended for race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, key areas induction hardened for longer life.
Additional Attributes:
- GTIN: 00842385005740
- Clutch Master Cylinder Included: No
- Grease Included: Yes
- Grade Type: Performance
- Pilot Bushing Included: No
- Pressure Plate Type: Heavy Duty
- Release Bearing Included: Yes
- Clutch Disc Diameter: 9.3
- Clutch Disc Diameter: 236
- Disc Material: Ceramic
- Input Spline Quantity: 21
- Input Shaft Diameter: 1.125
- Alignment Tool Included: Yes
- Disc Type Sprung Solid: Sprung
- Pressure Plate Bolts Included: No
- Clutch Slave Cylinder Included: No
- Flywheel Bolts Included: No
- Pilot Bearing Included: Yes
- Product Weight (lbs.): 16.9
- Torque Capacity (ft/lbs.): 365
- Torque Capacity Over OE: 69%
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14 x 14 x 5 inches
ACT_General_Installation_Instructions
