Product Overview

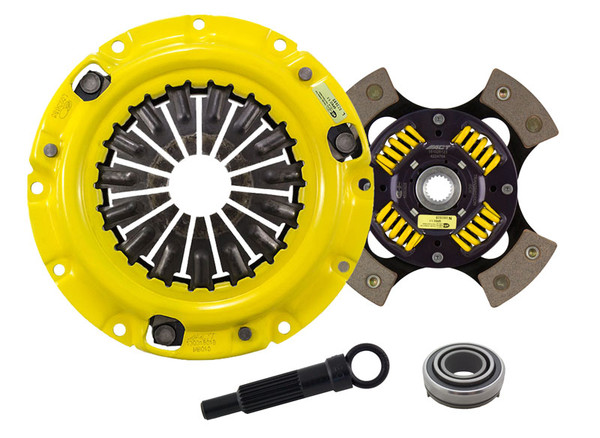

MB1-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
Features & Benefits:
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Associated Comments:
- Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Additional Attributes:
- GTIN: 00842385004965
- Clutch Master Cylinder Included: No
- Grease Included: Yes
- Grade Type: Performance
- Flywheel Included: No
- Pilot Bushing Included: No
- Pressure Plate Type: Heavy Duty
- Release Bearing Included: Yes
- Clutch Disc Diameter: 8.8
- Clutch Disc Diameter: 224
- Disc Material: Ceramic
- Input Spline Quantity: 20
- Input Shaft Diameter: 0.875
- Alignment Tool Included: Yes
- Disc Type Sprung Solid: Sprung
- Pressure Plate Bolts Included: No
- Clutch Slave Cylinder Included: No
- Flywheel Bolts Included: No
- Pilot Bearing Included: No
- Product Weight (lbs.): 11.7
- Torque Capacity (ft/lbs.): 415
- Torque Capacity Over OE: 63%
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14 x 14 x 5 inches
