Product Overview

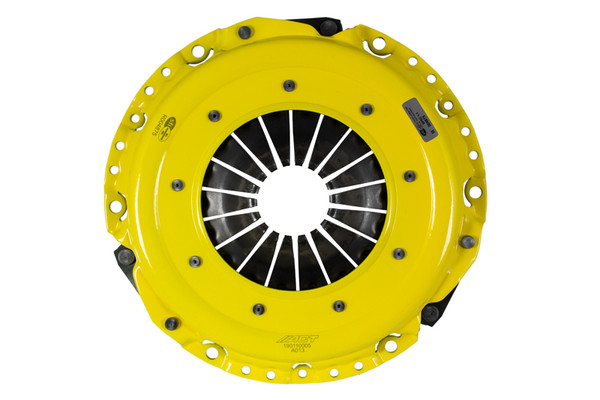

A013 pressure plate features an exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All ACT diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Heavy Duty pressure plates increase clamp load by 20 to 50 percent. The Heavy Duty pressure plates are recommended for use with a street or race disc.
Features & Benefits:
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Associated Comments:
- Light to moderate pedal effort, positive engagement; Available disc life extended by ACT's exclusive diaphragm design; Carefully engineered for improved durability, precisely assembled and accurately balanced; Recommended for street and race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Additional Attributes:
- GTIN: 00842385018672
- Diameter: 9
- Diameter: 228
- Type: Heavy Duty
- Grade Type: Performance
- Counterweight Assist: No
- Part Fitment Requirement: Must be used with ACT flywheel and disc (not included). Pressure Plate bolts included (M8-1.25 x 20mm).
- Product Weight (lbs.): 10.7
- SFI: 1.1
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14 x 14 x 3 inches
ACT_General_Installation_Instructions
