ACT Mod-Twin 225 XX Sprung Race - T3R-M01

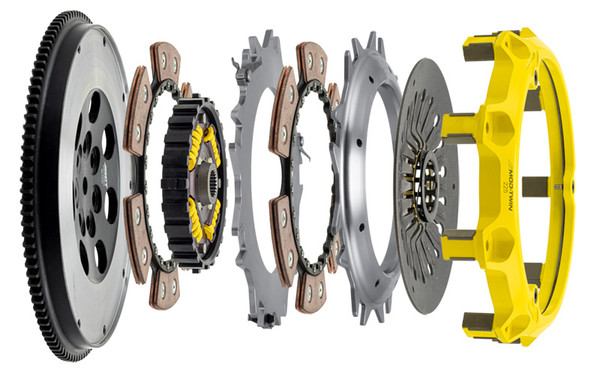

T3R-M01 Mod-Twin 225 XX Sprung Race Kit performs aggressive launches and smoother shifting in high powered AWD’s by combining twice the ceramic friction surfaces with an ultra-durable Mono-Drive sprung hub assembly in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent pedal feel requiring moderate effort. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.

Features & Benefits:

• "Excellence in Performance", backed by the best one-year warranty in the industry!

Associated Comments:

• Predictable aggressive engagement, increased pedal effort, smooth shifting, possible start-off judder with OE to mild transmission gear noise; Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions; Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances; Drag, Road or Rally Racing; Applying tactical engineering to the Mod-Twin, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFI certified

Additional Attributes:

• GTIN: 00842385025526
• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: Yes
• Pilot Bushing Included: No
• Pressure Plate Type: Maxx Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.8
• Clutch Disc Diameter: 225
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1
• Alignment Tool Included: Yes
• Disc Type Sprung Solid: Sprung
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: No
• Product Weight (lbs.): 28.1
• SFI: 1.2
• Torque Capacity (ft/lbs.): 1340
• Torque Capacity Over OE: 275%

Extended Information:

• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 5 inches
