Product Overview

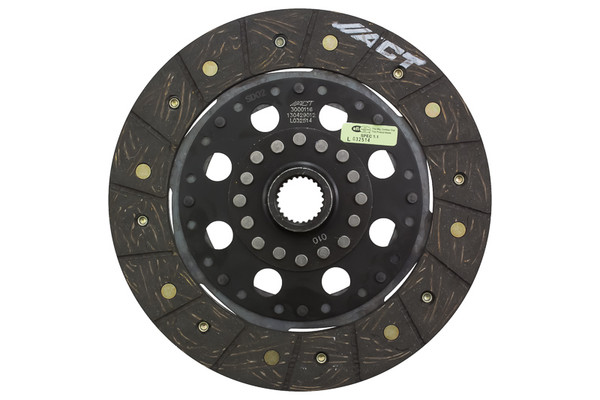

3000116 is a street rigid disc featuring premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs are modified with reduced marcel for faster shift action to complement ACT pressure plates. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. Lightweight, solid-hub design allows for quicker shifting and engagement. ACT's street rigid-hub discs provide race-proven performance with street manageability.
Features & Benefits:
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Associated Comments:
- Smooth engagement, quicker shifts, increased gear rattle; Premium organic composite friction blended for high heat tolerance, increased burst strength, faster recovery from overheating and less wear of mating surfaces, rigid design may increase spline wear; Chromoly hub is heat-treated for strength and durability; Recommended for high horsepower street or race use; Steel-backed linings for higher burst strength, reduced marcel for quicker shifts
Additional Attributes:
- GTIN: 00842385030100
- Diameter: 8.7
- Diameter: 220
- Spline Quantity: 24
- Grade Type: Performance
- Friction Plate: Yes
- Disc Material: Organic
- Splined Bore Diameter: 1.03125
- Disc Type: Solid
- Product Weight (lbs.): 2.4
- SFI: 1.1
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14 x 14 x 3 inches
ACT_General_Installation_Instructions
