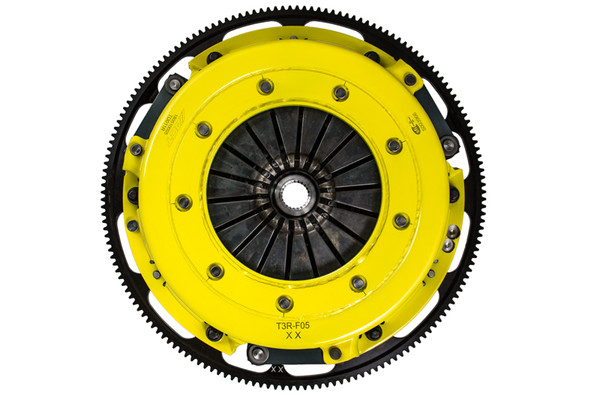

ACT Twin Disc MaXX XT Race Kit - T3R-F05

T3R-F05 race, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits undergo an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.

Features & Benefits:

• "Excellence in Performance", backed by the best one-year warranty in the industry!

Associated Comments:

• Heavy to very heavy pedal effort, aggressive engagement, mild to moderate gear rattle; Disc surfaces doubled for better wear, heat capacity and longer life, further extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for race use only; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Additional Attributes:

• GTIN: 00842385016784
• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: Yes
• Pilot Bushing Included: No
• Release Bearing Included: No
• Clutch Disc Diameter: 10.5
• Clutch Disc Diameter: 267
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1
• Alignment Tool Included: Yes
• Disc Type Sprung Solid: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Part Fitment Requirement: Verify that this kit's bolt pattern and spline count matches your vehicle.
• Product Weight (lbs.): 43.6
• SFI: 1.2
• Torque Capacity (ft/lbs.): 1496
• Torque Capacity Over OE: 213%

Extended Information:

• Emissions : 4
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 18 x 18 x 6 inches
