Product Overview

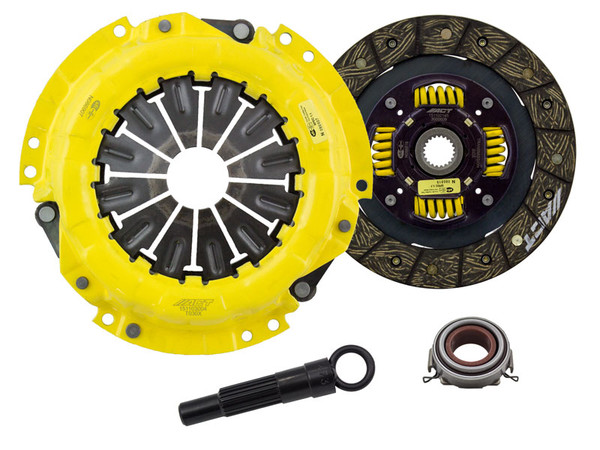

TC1-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.
Features & Benefits:
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Associated Comments:
- Moderate to heavy pedal effort, smooth engagement, OE to mild gear rattle; Longer friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade; Recommended for street and race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Additional Attributes:
- GTIN: 00837055009739
- Clutch Master Cylinder Included: No
- Grease Included: Yes
- Grade Type: Performance
- Flywheel Included: No
- Pilot Bushing Included: No
- Pressure Plate Type: Xtreme
- Release Bearing Included: Yes
- Clutch Disc Diameter: 8.3
- Clutch Disc Diameter: 212
- Disc Material: Organic
- Input Spline Quantity: 21
- Input Shaft Diameter: 0.9375
- Alignment Tool Included: Yes
- Disc Type Sprung Solid: Sprung
- Pressure Plate Bolts Included: No
- Clutch Slave Cylinder Included: No
- Flywheel Bolts Included: No
- Pilot Bearing Included: No
- Product Weight (lbs.): 12.9
- Torque Capacity (ft/lbs.): 310
- Torque Capacity Over OE: 74%
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14 x 14 x 5 inches
