Product Overview

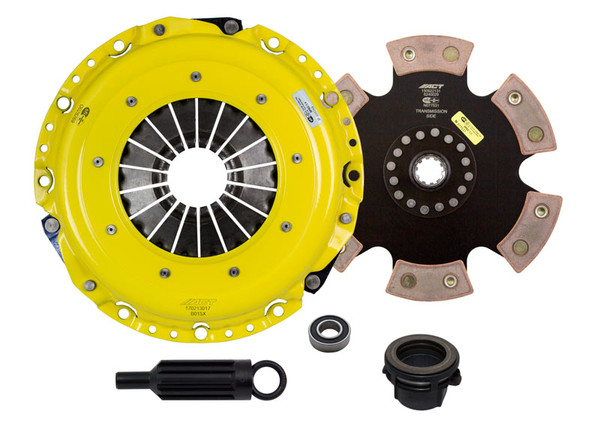

BM9-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
Features & Benefits:
- "Excellence in Performance", backed by the best one-year warranty in the industry!
Associated Comments:
- Moderate to heavy pedal effort, aggressive engagement, increased gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for race use only; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Additional Attributes:
- GTIN: 00842385018146
- Clutch Master Cylinder Included: No
- Grease Included: Yes
- Grade Type: Performance
- Flywheel Included: No
- Pilot Bushing Included: No
- Pressure Plate Type: Xtreme
- Release Bearing Included: Yes
- Clutch Disc Diameter: 9.4
- Clutch Disc Diameter: 240
- Disc Material: Ceramic
- Input Spline Quantity: 10
- Input Shaft Diameter: 1.375
- Alignment Tool Included: Yes
- Disc Type Sprung Solid: Solid
- Pressure Plate Bolts Included: Yes
- Clutch Slave Cylinder Included: No
- Flywheel Bolts Included: No
- Pilot Bearing Included: Yes
- Part Fitment Requirement: Designed for use with stock dual-mass flywheel. Pressure plate bolts included (M8-1.25 x 20mm).
- Product Weight (lbs.): 14.0
- Torque Capacity (ft/lbs.): 702
- Torque Capacity Over OE: 129%
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 18 x 18 x 6 inches
