Bilstein Shock Absorbers - 24-186520

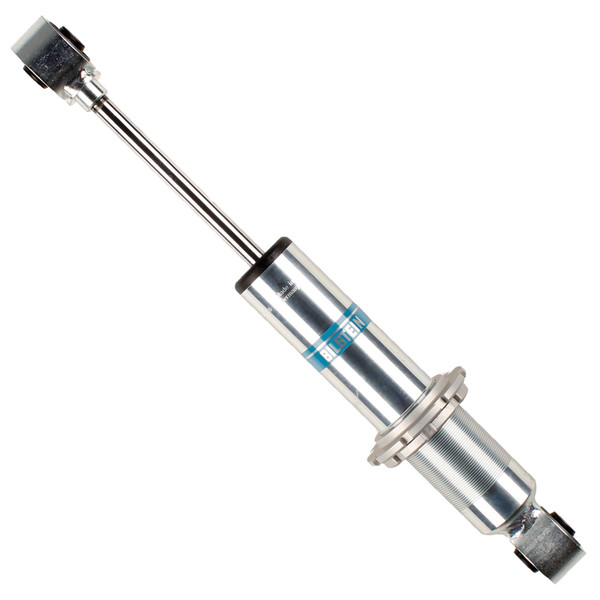

Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded, non-reservoir shock body. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware. For custom, light weight applications, M7100 Classic (Coilover) will deliver reliable performance.

Features & Benefits:

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Available for standard and coilover applications in a wide variety of lengths
• Self-adjusting deflective disc valving

Additional Attributes:

• GTIN: 00651860652238
• Body Design: Threaded Body (Coilover)
• Body Diameter (ID): 46mm
• Collapsed Length (IN): 12.34
• Collapsed Length (IN) Rounded: 12
• Collapsed Length (MM): 313.5
• Compression @0.52m/s: 965
• Extended Length (IN): 18.22
• Extended Length (IN) Rounded: 18
• Extended Length (MM): 463.0
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 14.2mm
• Mount Type: Eye-to-Eye
• Optional Reservoir Clamp: N/A
• PartType: Shocks / Struts
• Rebound @0.52m/s: 3030
• Reservoir: No
• Segment: Motorsports
• Series: M 7100 Classic (Coilover)
• Spring Hardware: Single Rate (2.5in)
• Spring Seat Included: Lower
• Upper Mount Type: Eye 14.2mm

Extended Information:

• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.7700 x 4.1300 x 4.1300 inches
