Product Overview

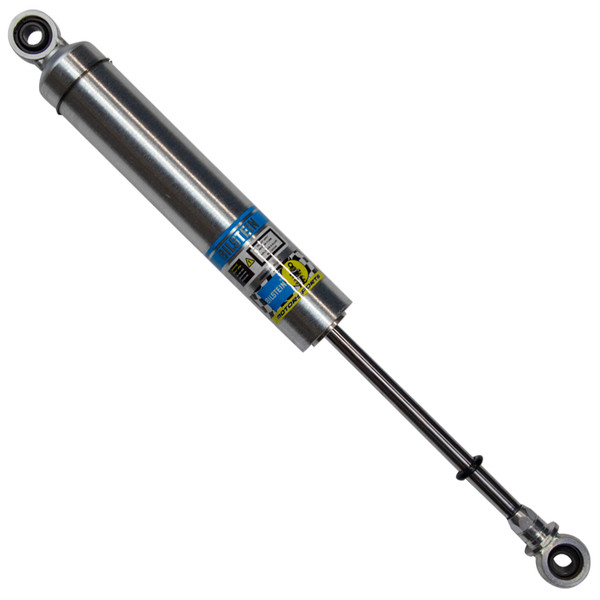

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
Features & Benefits:
- Plated steel body for durability and superior heat dissipation
- 46mm piston design for maximum damping control
- Standard 1/2” graphite heims
Additional Attributes:
- GTIN: 00651860880532
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-coilover)
- Body Diameter (ID): 46mm
- Body Material: Steel
- Collapsed Length (IN): 13.15
- Collapsed Length (MM): 334.0
- Extended Length (IN): 20.08
- Extended Length (MM): 510.0
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: 1/2in Heim
- PartType: Shocks / Struts
- Piston Type: Digressive
- Segment: Motorsports
- Series: SZ Series
- Spring Seat Included: No
- Upper Mount Type: 1/2in Heim
- Valving Identifier: 3/10 (com/reb)
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 22.4500 x 2.9500 x 2.9500 inches
