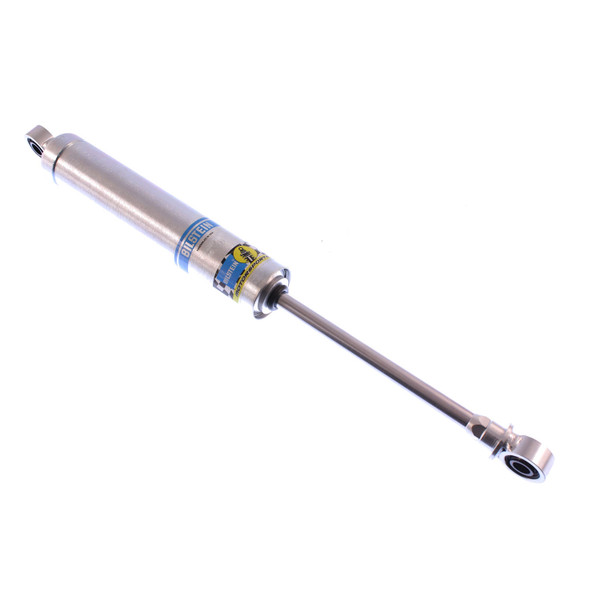

Bilstein Shock Absorbers - 33-321998

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Features & Benefits:

• Plated steel body for durability and superior heat dissipation
• 46mm piston design for maximum damping control
• Standard 1/2” graphite heims

Additional Attributes:

• GTIN: 00651860880778
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-coilover)
• Body Diameter (ID): 46mm
• Body Material: Steel
• Collapsed Length (IN): 14.88
• Collapsed Length (MM): 378.0
• Extended Length (IN): 23.52
• Extended Length (MM): 597.5
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: 1/2in Heim
• PartType: Shocks / Struts
• Piston Type: Digressive
• Segment: Motorsports
• Series: SZ Series
• Spring Seat Included: No
• Upper Mount Type: 1/2in Heim
• Valving Identifier: 14/2 (com/reb)

Extended Information:

• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
