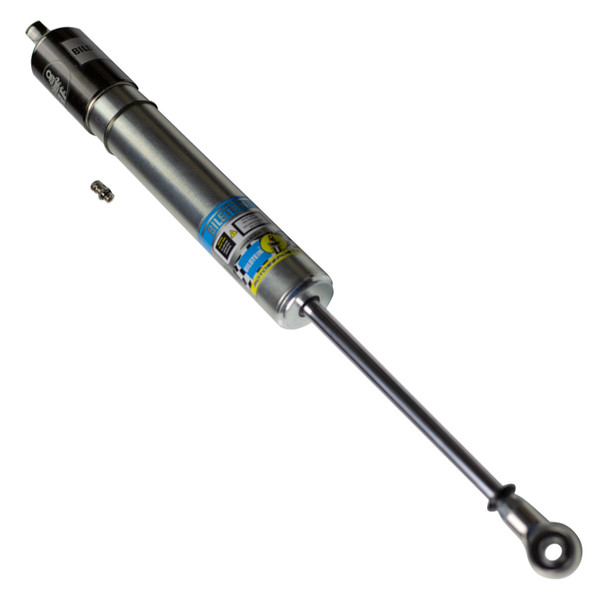

Bilstein Shock Absorbers - 33-323916

Bilstein SNS2 Series (BV) Suspension Shock Absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately, base valve assembly and premium Teflon heims.  These Suspension Shock Absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately).  SNS2 Series (BV) Suspension Shock Absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable dampers with extra tuning options through base valve technology.

Features & Benefits:

• Base Valve design delivers ultra low rod pressures and elminates gas preload
• Modular steel body design allows racer rebuildability
• Comes with IMCA-legal plug assembly installed (SNS2 Series)

Additional Attributes:

• GTIN: 00651860895697
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body Screw Top (Non-coilover)
• Body Diameter (ID): 46mm
• Body Material: Steel
• Collapsed Length (IN): 13.35
• Collapsed Length (MM): 339.1
• Extended Length (IN): 19.16
• Extended Length (MM): 486.7
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: 1/2in Heim
• PartType: Shocks / Struts
• Piston Type: Digressive
• Segment: Motorsports
• Series: SNS2 Series (BV)
• Spring Seat Included: No
• Upper Mount Type: 1/2in Heim
• Valving Identifier: RF VOLUSIA

Extended Information:

• Emissions : 1
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 22.4500 x 2.9500 x 2.9500 inches
