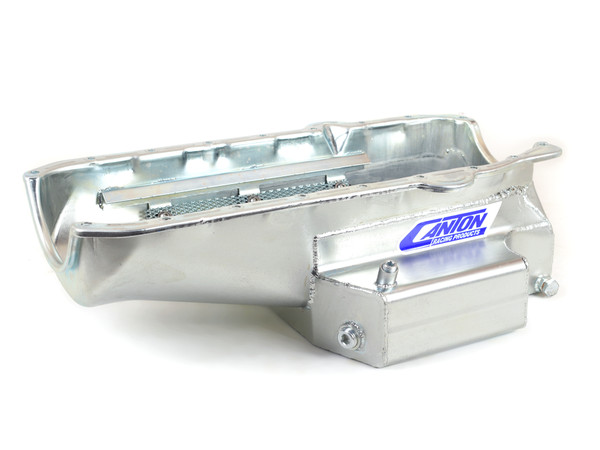

Canton 11-102M Oil Pan Small Block Chevy Shallow Circle Track 12" Long Sump - 11-102M

This Competition wet sump is for '80-'85 Small Block Chevys with right side dipstick. It is designed for applications where the engine is set extra low in the chassis. Fits front steer chassis with both aftermarket and Camaro front ends. The pan has a 6-1/2" deep, 15" wide, 12" long sump, and a 7 quart system capacity. Requires one of our pickups.

Features & Benefits:

• 7 qt System Capacity
• 3.75" Stroke Clearance
• Six Trap Door Baffles & Three Runners
• Crank Scraper
• Built in Windage Tray
• Bolt in Slosh Baffle
• 1/2" NPT Temperature Bung
• Provison for our Pan Mounted Dipstick
• Magnetic Drain Plug

Associated Comments:

• N/A
• N/A

Additional Attributes:

• GTIN: 00887753711144
• Color: Silver
• Dipstick Port: Yes
• Drain Thread Size: 1/2-20
• Baffled: Yes
• Capacity: 7 Quart System Capacity
• Crank Scraper Included: Yes
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Engine: For S.B. Chevy 1980-85 Blocks with right side dipstick
• Feature 1: Baffled with 6 Trap Doors/3 Directional Runners
• Feature 2: Bolt On Slosh Baffle For Oil Control
• Feature 3: Removable Screen Windage Tray and Built in Crank Scraper
• Feature 4: Reduces Crank Windage And Saves Horsepower
• Feature 5: Provision for Canton Pan Mounted Dipstick
• Feature 6: 1/2 NPT Temp Sensor Bung
• Feature 7: Magnetic Drain Plug
• Finish: Silver Plating
• Gasket or Seal Included: No
• Hardware Included: Yes
• Kicked Out: Yes
• Material: 16 Gauge Steel
• Pickup Included: No
• Recommended Accessory 1: 20-030 - Pickup for Small Block Standard Volume Pumps M55 & M55A
• Recommended Accessory 2: 20-031 - Pickup for Small Block High Volume Pumps M55HV
• Recommended Accessory 3: 20-032 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
• Recommended Accessory 4: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
• Recommended Accessory 5: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 6: 88-100 - SBC Pre '85 Oil Pan Gasket
• Stoke: 3.75 inches
• Windage Tray Included: Yes

Extended Information:

• Emissions : 1
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 16.25 x 9.5 inches
