Product Overview

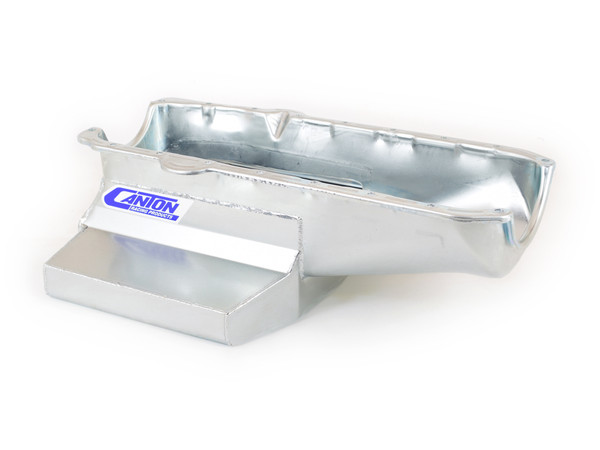

This Competition wet sump is for pre-'80 Small Block Chevys with left side dipstick. Fits front steer chassis with both aftermarket and Camaro front ends, others when the engine is moved. It has a 7" deep, 15" wide, 12" long sump, and an 8 quart system capacity. Will work with all starter and flywheel combinations. Requires one of our pickups.
Features & Benefits:
- 8 qt System Capacity
- 3.75" Stroke Clearance
- Six Trap Door Baffles & Three Runners
- Crank Scraper
- Bolt in Slosh Baffle
- Built in Windage Tray
- 1/2” NPT Temperature Bung
- Provision for our Pan Mounted Dipstick
- Magnetic Drain Plug
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753711168
- Baffled: Yes
- Capacity: 8 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For S.B. Chevy Pre-1980 Blocks
- Feature 1: Baffled with 6 Trap Doors/3 Directional Runners
- Feature 2: Bolt On Slosh Baffle For Oil Control
- Feature 3: Removable Screen Windage Tray and Built in Crank Scraper
- Feature 4: Reduces Crank Windage And Saves Horsepower
- Feature 5: Provision for Canton Pan Mounted Dipstick
- Feature 6: 1/2 NPT Temp Sensor Bung
- Feature 7: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
- Recommended Accessory 2: 20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
- Recommended Accessory 3: 20-070 - Pickup for Small Block High Volume Pumps M55HV
- Recommended Accessory 4: 20-072 - Pickup for Small block High Volume M155HV Pump w/ 3/4" Tube
- Recommended Accessory 5: 20-077 - Press In Pickup for M10552 & M10555 Pump
- Recommended Accessory 6: 20-071 - Flange Mount Pickup for M10552 & M10555 Pump
- Recommended Accessory 7: 20-100 - Pickup for Big Block 5 bolt pumps M77 & M77HV
- Recommended Accessory 8: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
- Recommended Accessory 9: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Stoke: 3.75 inches
- Windage Tray Included: Yes
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24.5 x 16.25 x 9.5 inches
Pan Install - Standard Part B
