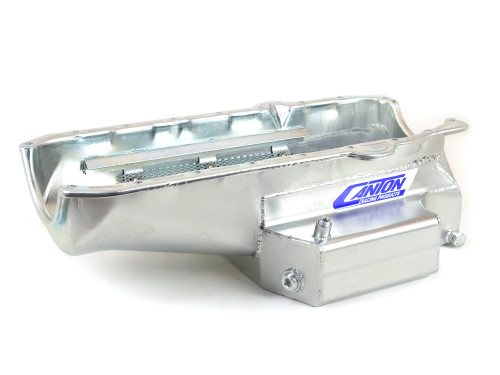

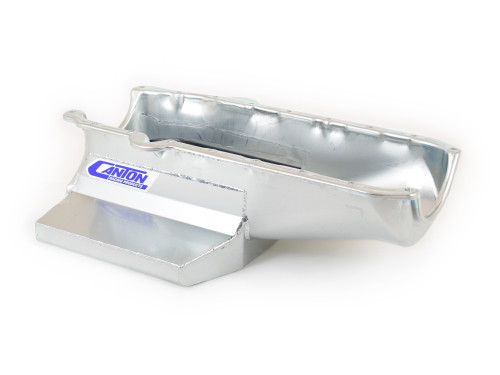

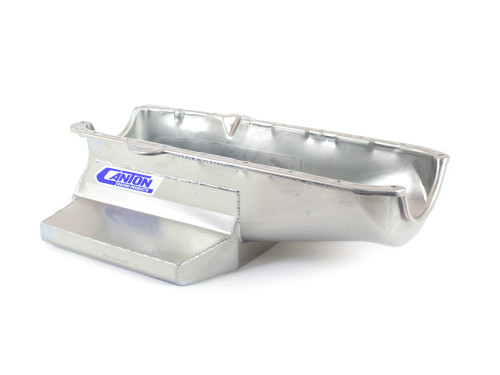

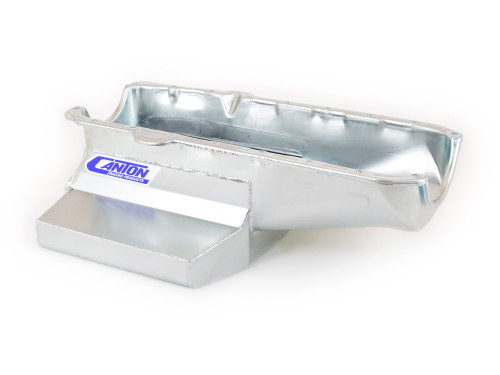

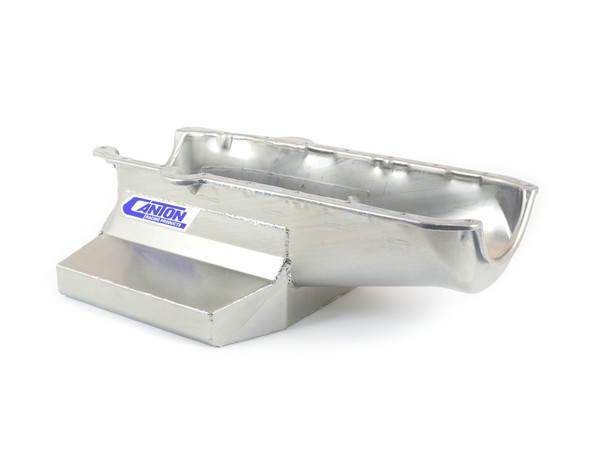

Canton 11-120T Oil Pan Small Block Chevy 12 Inch CT Long Sump 7" Deep - 11-120T

This Competition wet sump is for '86 and newer Small Block Chevys with one piece seals. Fits front steer chassis with both aftermarket and Camaro front ends, others when the engine is moved. It has a 7" deep, 15" wide, 12" long sump, and an 8 quart system capacity. Will work with all starter and flywheel combinations. Requires one of our pickups.

Features & Benefits:

• 8 qt System Capacity
• 3.75" Stroke Clearance
• Six Trap Door Baffles & Three Runners
• Crank Scraper
• Bolt in Slosh Baffle
• Built in Windage Tray
• 1/2” NPT Temperature Bung
• Provison for our Pan Mounted Dipstick
• Magnetic Drain Plug

Associated Comments:

• N/A

Additional Attributes:

• GTIN: 00887753711182
• Baffled: Yes
• Capacity: 8 Quart System Capacity
• Crank Scraper Included: Yes
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Engine: For S.B. Chevy 1986 and newer blocks with one piece seal
• Feature 1: Baffled with 6 Trap Doors/3 Directional Runners
• Feature 2: Bolt On Slosh Baffle For Oil Control
• Feature 3: Removable Screen Windage Tray and Built in Crank Scraper
• Feature 4: Reduces Crank Windage And Saves Horsepower
• Feature 5: Provision for Canton Pan Mounted Dipstick
• Feature 6: 1/2 NPT Temp Sensor Bung
• Feature 7: Magnetic Drain Plug
• Finish: Silver Plating
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: Yes
• Material: 16 Gauge Steel
• Pickup Included: No
• Recommended Accessory 1: 20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
• Recommended Accessory 2: 20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
• Recommended Accessory 3: 20-070 - Pickup for Small Block High Volume Pumps M55HV
• Recommended Accessory 4: 20-072 - Pickup for Small block High Volume M155HV Pump w/ 3/4" Tube
• Recommended Accessory 5: 20-077 - Press In Pickup for M10552 & M10555 Pump
• Recommended Accessory 6: 20-071 - Flange Mount Pickup for M10552 & M10555 Pump
• Recommended Accessory 7: 20-100 - Pickup for Big Block 5 bolt pumps M77 & M77HV
• Recommended Accessory 8: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
• Recommended Accessory 9: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
• Stoke: 3.75 inches
• Windage Tray Included: Yes

Extended Information:

• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 16.25 x 9.5 inches
