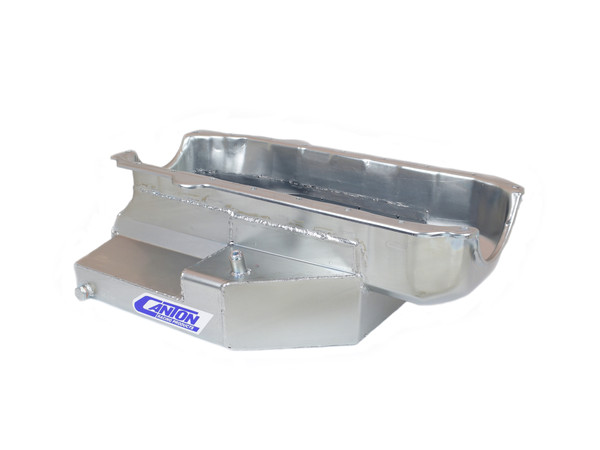

Canton 11-180 Oil Pan Small Block Chevy Circle Track Open Chassis 85 & Earlier - 11-180

This SBC competition open chassis wet sump is for ?85 and earlier Small Block Chevys. It is designed for chassis without any x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models). It has a 11-1/2" wide, 16" long 7" deep ?L? sump, and a 9 quart system capacity. Requires one of our pickups.

Features & Benefits:

• Clears 3.875" Stroke
• 7" Deep 16" long 11.5" wide sump
• 9 qt System Capacity
• Six Trap Door Baffle System
• Crank Scraper
• Bolt In Screen Windage Tray
• 1/2" NPT Temperature Bung
• Provision for pan mounted dipstick
• Magnetic Drain Plug

Associated Comments:

• N/A

Additional Attributes:

• GTIN: 00887753711229
• Baffled: Yes
• Capacity: 9 Quart System Capacity
• Crank Scraper Included: Yes
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Engine: For S.B. Chevy 1985 and earlier blocks
• Feature 1: Clears 3.875in Stroke
• Feature 2: 7in Deep 16in long 11.5in wide sump
• Feature 3: Baffled with 6 Trap Doors/3 Directional Runners
• Feature 4: Bolt On Slosh Baffle For Oil Control
• Feature 5: Removable Screen Windage Tray and Built in Crank Scraper
• Feature 6: Provision for Canton Pan Mounted Dipstick
• Feature 7: 1/2 NPT Temp Sensor Bung
• Feature 8: Magnetic Drain Plug
• Finish: Silver Plating
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: Yes
• Material: 16 Gauge Steel
• Pickup Included: No
• Recommended Accessory 1: 20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
• Recommended Accessory 10: 88-100 - 1 Piece SBC Pre-85' Oil Pan Gasket
• Recommended Accessory 11: 88-102 - 4 Piece SBC Pre-85' Oil Pan Gasket
• Recommended Accessory 2: 20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
• Recommended Accessory 3: 20-070 - Pickup for Small Block High Volume Pumps M55HV
• Recommended Accessory 4: 20-072 - Pickup for Small Block High Volume Pumps w/ 3/4" Tube M155HV
• Recommended Accessory 5: 20-077 - Press In Pickup for Melling 10552 & 10555 Pumps
• Recommended Accessory 6: 20-100 - Pickup for Big Block (5-bolt) Pumps M77 & M77HV
• Recommended Accessory 7: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 8: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 9: 22-300 - SBC Oil Pan Stud Kit
• Stoke: 3.875 inches
• Windage Tray Included: Yes

Extended Information:

• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 16.25 x 9.5 inches
