Product Overview

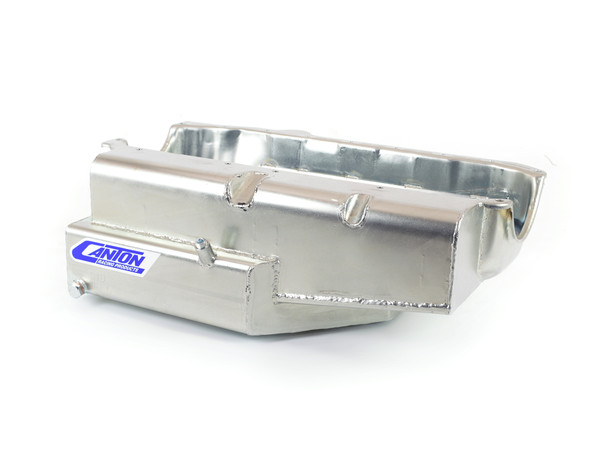

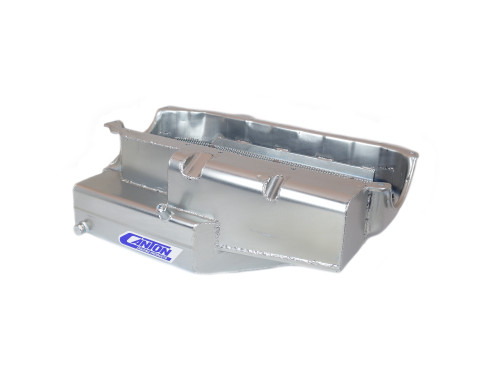

This open chassis "L" style steel wet sump is for ?85 and earlier Small Block Chevys with left or rear mounted starters. This oil pan is designed for chassis without x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models). It has an 11-1/2" wide, 16" long, 7" deep ?L? sump with a 9 quart system capacity. Requires one of our pickups. Also an available option for this pan is #20-914 Pro Louvered Windage Tray, designed to replace the standard screen tray in this pan.

Features & Benefits:

9 qt System Capacity
Six Trap Door Baffles & Directional Oil Runners
Pro Style Oil Recovery Pouch
Bolt in Slosh Baffle
Built in Screen Windage Tray
1/2” NPT Temperature Bung
Provison for our Pan Mounted Dipstick
Magnetic Drain Plug

Associated Comments:

Additional Attributes:

GTIN: 00887753711250
Baffled: Yes
Capacity: 9 Quart System Capacity
Crank Scraper Included: No
Dipstick Port: Yes
Drain Plug Included: Yes
Engine: For S.B. Chevy 1985 and earlier blocks
Feature 1: Pro-Style Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
Feature 3: Baffled with 6 Trap Doors/3 Directional Runners
Feature 4: Bolt On Slosh Baffle For Oil Control
Feature 5: Removable Screen Windage Tray
Feature 6: Provision for Canton Pan Mounted Dipstick
Feature 7: 1/2 NPT Temp Sensor Bung
Feature 8: Magnetic Drain Plug
Finish: Silver Plating
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
Recommended Accessory 10: 88-100 - 1 Piece SBC Pre-85' Oil Pan Gasket
Recommended Accessory 11: 88-102 - 4 Piece SBC Pre-85' Oil Pan Gasket
Recommended Accessory 2: 20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
Recommended Accessory 3: 20-070 - Pickup for Small Block High Volume Pumps M55HV
Recommended Accessory 4: 20-072 - Pickup for Small Block High Volume Pumps w/ 3/4" Tube M155HV
Recommended Accessory 5: 20-077 - Press In Pickup for Melling 10552 & 10555 Pumps
Recommended Accessory 6: 20-100 - Pickup for Big Block (5-bolt) Pumps M77 & M77HV
Recommended Accessory 7: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 8: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 9: 22-300 - SBC Oil Pan Stud Kit
Stoke: 3.875"
Windage Tray Included: Yes
