Product Overview

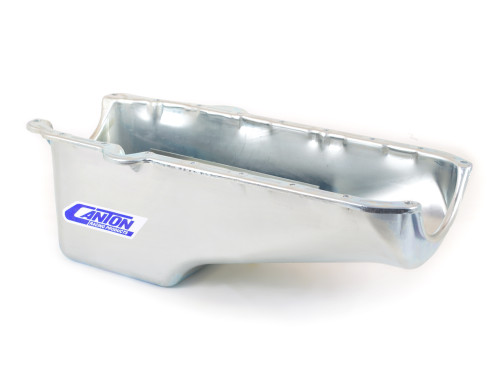

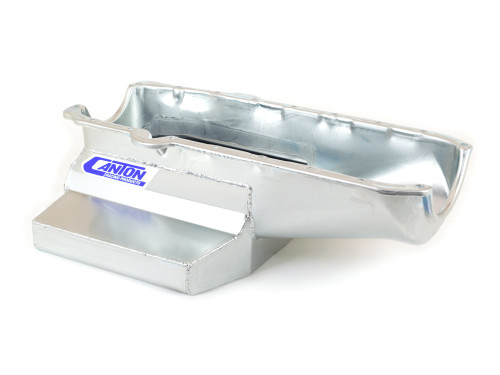

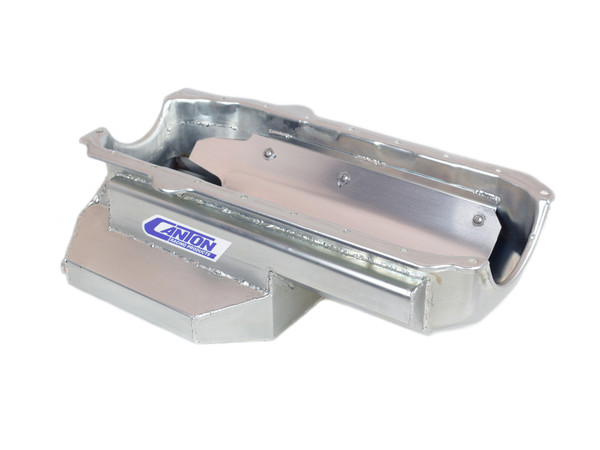

This circle track oil pan is for use on pre?85 blocks SBC motors. It?s shallow 6 ?? depth and L-sump design make it ideal for many applications. The sump features a six trap door baffle, oil recovery pouch, built in louvered windage tray,
Features & Benefits:
- Wet sump pan for '85 and earlier small block Chevy engines
- 6.5-quart system capacity
- Features six trap door baffles
- Oil recovery pouch
- Bolt in slosh baffle
- Built in louvered windage tray
- 1/2" temperature bung
- Provision for Canton Racing pan mounted dipstick
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753711328
- Baffled: Yes
- Capacity: 6.5 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For S.B. Chevy 1985 and earlier blocks
- Feature 1: Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
- Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
- Feature 3: Baffled with 6 Trap Doors/3 Directional Runners
- Feature 4: Bolt On Slosh Baffle For Oil Control
- Feature 5: Removable Louvered Windage Tray
- Feature 6: Provision for Canton Pan Mounted Dipstick
- Feature 7: 1/2 NPT Temp Sensor Bung
- Feature 8: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-036 - Pickup for Small Block Standard Volume Pump M55 & M55A
- Recommended Accessory 10: 88-100T ? SBC 86'+ Oil Pan Gasket
- Recommended Accessory 2: 20-031 - Pickup for Small Block High Volume Pump M55HV
- Recommended Accessory 3: 20-032 - Pickup for Small Block Standard Volume M155 Pump with 3/4" Inlet
- Recommended Accessory 4: M-55 - SBC Standard Volume Oil Pump
- Recommended Accessory 5: M-55A - SBC Standard Volume High Pressure Oil Pump
- Recommended Accessory 6: M-55HV - SBC High Volume Oil Pump
- Recommended Accessory 7: M-155 - SBC Standard Volume Oil Pump with 3/4" Inlet
- Recommended Accessory 8: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 9: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T Fitting
- Windage Tray Included: Yes
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26.5 x 13.5 x 10 inches
