Product Overview

Emissions: CARB Eligible
Life Cycle Status: Available To Order

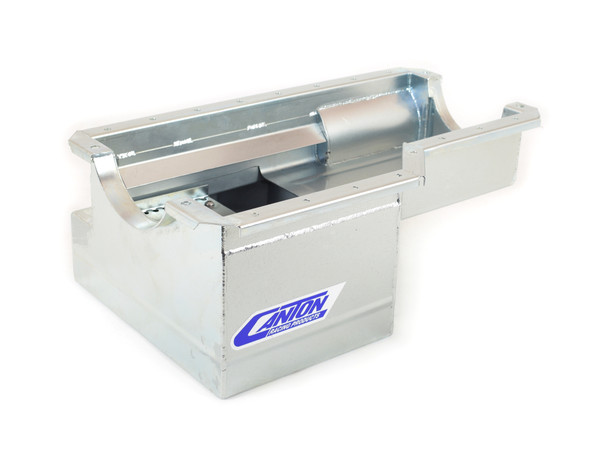

This Ford left turn front sump is for ?74-97 2300cc ohc engines in front sump Pinto chassis and mini-modifieds. It has a 7-1/2" Deep, 12" Wide, 9-1/2" Long sump that holds 5-1/2 quarts and has a 6 quart system capacity. This pan works with our 2300 main support when using a 86C pump and pan's crank scraper is modified for clearance. This pan requires our 11-921 pickup.

Features & Benefits:

6 qt System Capacity
Three Trap Door Baffles & Directional Oil Runners
Crank Scraper
Removable Windage/Anti-Slosh Baffle
1/2" NPT Temperature Bung
Provision For Our Pan Mounted Dipstick
Magnetic Drain Plug

Associated Comments:

Additional Attributes:

GTIN: 00887753711380
Baffled: Yes
Capacity: 6 Quart System Capacity
Crank Scraper Included: Yes
Dipstick Port: Yes
Drain Plug Included: Yes
Engine: For Ford '74-'97 2300cc ohc engines
Feature 1: Baffled with 3 Trap Doors and Directional Runners
Feature 2: Bolt On Windage / Anti-Slosh Baffle For Oil Control
Feature 3: Built in Crank Scraper
Feature 4: Provision for Canton Pan Mounted Dipstick
Feature 5: 1/2 NPT Temp Sensor Bung
Feature 6: Magnetic Drain Plug
Finish: Silver Plating
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: Yes
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 11-911 - 3/4" Dia. Tube pickup for 86 C & 86 CHV pumps
Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Stoke: 3.126"
Windage Tray Included: No
