Product Overview

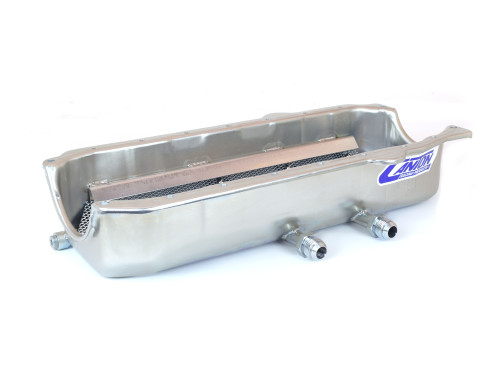

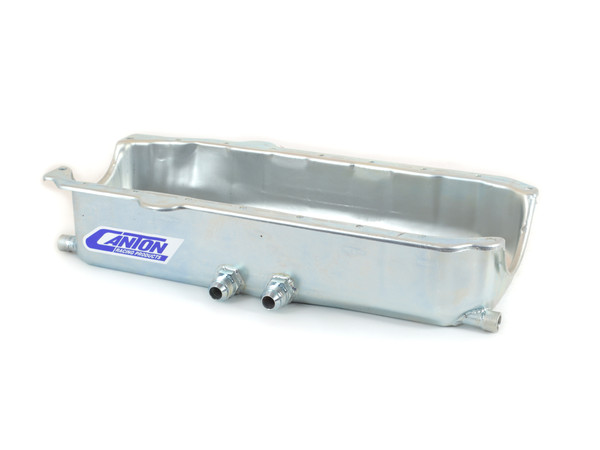

This SBC shallow competition dry sump is for all pre-85 blocks. This basic dry sump fits almost all applications and is built 4-1/2" deep to permit low engine installations.
Features & Benefits:
- Two -12AN Pickups Exiting on the Right Side
- Pickup Tube Clean Out Ports
- Crank Scraper
- Built In Screen Windage Tray
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753711403
- Baffled: No
- Crank Scraper Included: Yes
- Drain Plug Included: Yes
- Feature 1: Two -12AN Pickups Exiting on the Right Side
- Feature 2: Pickup Tube Clean Out Ports
- Feature 3: Crank Scraper
- Feature 4: Built In Screen Windage Tray
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 22-300 - SBC Oil Pan Stud Kit
- Recommended Accessory 2: 22-540 - SBC Oil Input Adapter
- Recommended Accessory 3: 22-640 - In-Line Screen Protector -8 AN Fittings
- Recommended Accessory 4: 22-650 - In-Line Screen Protector -10 AN Fittings
- Recommended Accessory 5: 22-660 - In-Line Screen Protector -12 AN Fittings
- Recommended Accessory 6: 22-750 - -12 AN Screen Pump Protector
- Recommended Accessory 7: 23-110L - 10qt Universal Dry Sump Tank w/ Left Side Fittings
- Recommended Accessory 8: 23-120 - 10qt Sprint Style Dry Sump Tank w/ Right Side Fittings
- Recommended Accessory 9: 88-100 - SBC Pre ?85 Oil Pan Gasket
- Stoke: 3.875 inches
- Sump Depth: 4.25 inches
- Sump Width: 11 inches
- Windage Tray Included: Yes
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23 x 12 x 9 inches
Pan Install - Standard Part B
