Product Overview

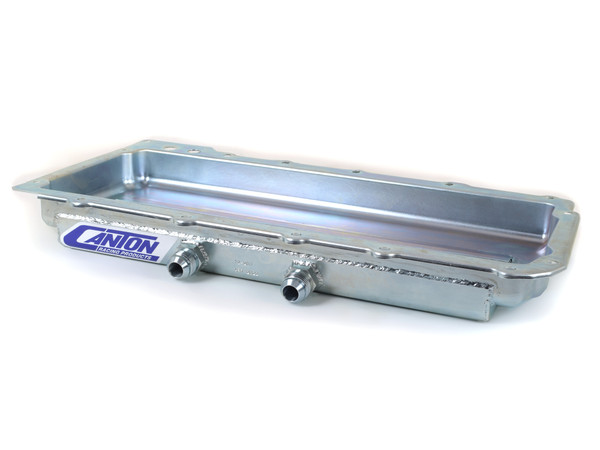

This GM LS1/LS6 pan is specific for engines with dry sump oiling systems for use in drag or road racing. This oil pan is 2.5" deep.
Features & Benefits:
- Two -12AN Pickups Exiting on the Right Side
- 1/2" deep oil collection trough which aids in oil scavenging
- Provision for a third centrally mounted pickup
- Built In Screen Windage Tray
- 2.5" Deep Sump
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753711458
- Baffled: No
- Crank Scraper Included: No
- Feature 1: Two -12AN Pickups Exiting on the Right Side
- Feature 2: 1/2" deep oil collection trough which aids in oil scavenging
- Feature 3: Provision for a third centrally mounted pickup
- Feature 4: Built In Screen Windage Tray
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 21-870 - LS Flywheel Cover for T56 Bellhousing
- Recommended Accessory 10: 23-120 - 10qt Sprint Style Dry Sump Tank w/ Right Side Fittings
- Recommended Accessory 2: 22-302 - GM LS Oil Pan Stud Kit
- Recommended Accessory 3: 22-620 - Billet Aluminum remote spin-on filter mount 13/16"-16 Thread
- Recommended Accessory 4: 22-630 - GM LS1 Remote Oil Filter Adapter
- Recommended Accessory 5: 22-640 - In-Line Screen Protector -8 AN Fittings
- Recommended Accessory 6: 22-650 - In-Line Screen Protector -10 AN Fittings
- Recommended Accessory 7: 22-660 - In-Line Screen Protector -12 AN Fittings
- Recommended Accessory 8: 22-750 - -12 AN Screen Pump Protector
- Recommended Accessory 9: 23-110L - 10qt Universal Dry Sump Tank w/ Left Side Fittings
- Windage Tray Included: Yes
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 13.5 x 9.75 inches
Pan Install - Standard Part B
