Product Overview

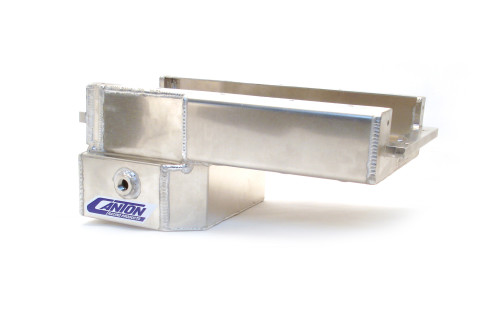

Our LS NEXT dry sump oil pan is designed to take the changes that Dart has made to the LS block and maximize their effectiveness. Our billet end caps offer a precise fit to the unique pan rail of the Dart LS NEXT block. Our Pro-style oil recovery pouch is designed to maximize the horsepower that Dart freed up in the bottom end.
Features & Benefits:
- Pro Style Oil Recovery Pouch
- Machined Billet Front & Rear Seals

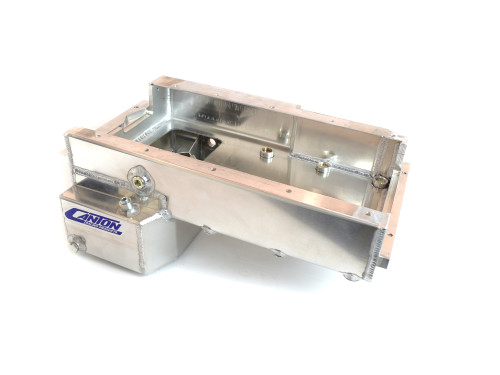

- Built in louvered Windage Tray
- Magnetic Drain Plug

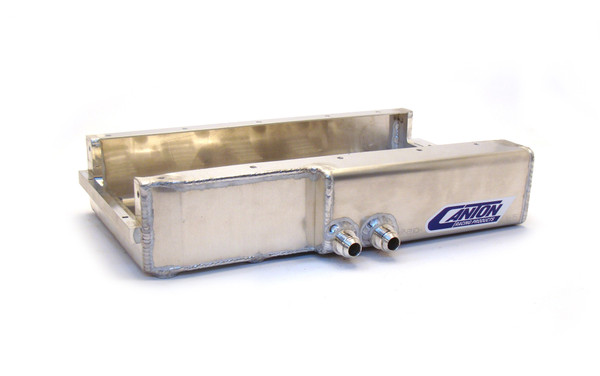

- Two -12AN pickups on passenger side
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753711465
- Baffled: No
- Crank Scraper Included: No
- Drain Plug Included: Yes
- Engine: Dart LS Next
- Feature 1: Pro-Style Recovery Pouch
- Feature 2: Machined Billet Front & Rear Seals
- Feature 3: (2) -12 AN Pickups on the right side of the pan
- Feature 4: Built in Louvered Windage Tray
- Feature 5: Magnetic Drain Plug
- Finish: Raw Aluminum
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: .100 Aluminum
- Pickup Included: No
- Recommended Accessory 1: 21-870 - LS Flywheel Cover for T56 Bellhousing

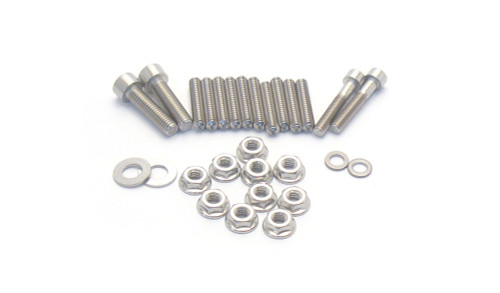

- Recommended Accessory 2: 22-305 - Dart LS Next Oil Pan Stud Kit
- Recommended Accessory 3: 22-620 - Billet Aluminum remote spin-on filter mount 13/16"-16 Thread
- Recommended Accessory 4: 22-640 - In-Line Screen Protector -8 AN Fittings
- Recommended Accessory 5: 22-650 - In-Line Screen Protector -10 AN Fittings
- Recommended Accessory 6: 22-660 - In-Line Screen Protector -12 AN Fittings
- Recommended Accessory 7: 22-750 - -12 AN Screen Pump Protector
- Recommended Accessory 8: 23-110L - 10qt Universal Dry Sump Tank w/ Left Side Fittings
- Recommended Accessory 9: 23-120 - 10qt Sprint Style Dry Sump Tank w/ Right Side Fittings
- Windage Tray Included: Yes
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 25 x 16 x 9 inches
