Product Overview

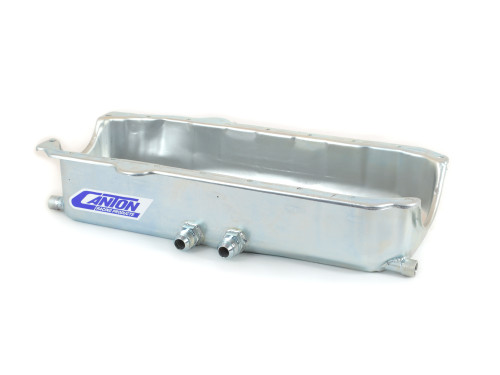

This S.B. Ford shallow dry sump is for 289-302 Small Block engines. This pan is 4-1/2" in total depth. Will work with late model or aftermarket starter with stock flywheel.
Features & Benefits:
- Two -12AN Pickups Exiting on the Right Side
- Oil Recovery Pouch
- 1/4" Deep Oil Collection Trough
- Crank Scraper
- Built In Louver Windage Tray
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753711472
- Baffled: No
- Crank Scraper Included: Yes
- Drain Plug Included: Yes
- Feature 1: Two -12AN Pickups Exiting on the Right Side
- Feature 2: Oil Recovery Pouch
- Feature 3: 1/4" Deep Oil Collection Trough
- Feature 4: Crank Scraper
- Feature 5: Built In Louver Windage Tray
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 22-640 - In-Line Screen Protector -8 AN Fittings
- Recommended Accessory 2: 22-650 - In-Line Screen Protector -10 AN Fittings
- Recommended Accessory 3: 22-660 - In-Line Screen Protector -12 AN Fittings
- Recommended Accessory 4: 22-750 - -12 AN Screen Pump Protector
- Recommended Accessory 5: 23-110L - 10qt Universal Dry Sump Tank w/ Left Side Fittings
- Recommended Accessory 6: 23-120 - 10qt Sprint Style Dry Sump Tank w/ Right Side Fittings
- Recommended Accessory 7: 88-602 - 302 Gasket 1 piece design
- Stoke: 3.4 inches
- Sump Depth: 4.5 inches
- Windage Tray Included: Yes
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
Pan Install - Standard Part B
