Product Overview

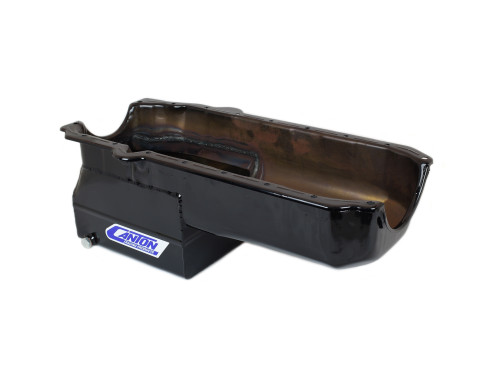

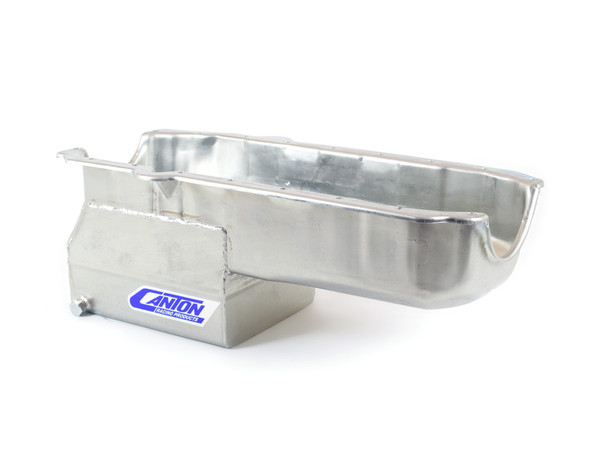

This bracket drag race oil pan is for Small Block Chevy ?80 to ?85 blocks with right side dipstick and is designed to fit most stock chassis. It has an 8" deep by 9-1/2" long sump and a 6 qt. system capacity. Clears a 3.875" stroke with a steel rod. Will work with stock or aftermarket starters. This pan requires one of our pickups.
Features & Benefits:
- 6 qt System Capacity
- Clears 3.875" Stroke
- Drag Racing Trap Door Baffle System
- Screen Windage Tray
- Crank Scraper
- Magnetic Drain Plug
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753711526
- Baffled: Yes
- Capacity: 6 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: No
- Drain Plug Included: Yes
- Engine: For S.B. Chevy 1980-85 Blocks with right side dipstick
- Feature 1: Features Competition Oil Recovery System
- Feature 2: Removable Screen Windage Tray
- Feature 3: Built in Crank Scraper
- Feature 4: Trap Door Baffle For Oil Control
- Feature 5: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-050 - Pickup for SBC Standard Volume Pumps M55 & M55A
- Recommended Accessory 2: 20-055 - Pickup for SBC Standard Volume Pump M155 w/ 3/4" Inlet
- Recommended Accessory 3: 20-080 - Pickup for SBC High Volume Pump M55HV
- Recommended Accessory 4: 20-081 - Bolt-On Pickup for Melling M10555 Pumps
- Recommended Accessory 5: 20-082 - Press-in Pickup for SBC High Volume Melling 10555 Pump
- Recommended Accessory 6: 20-085 - Pickup for SBC High Volume Pump M155HV w/ 3/4" Inlet
- Recommended Accessory 7: 88-100 ? SBC Pre ?85 Oil Pan Gasket
- Stoke: 3.875 inches
- Sump Depth: 8 inches
- Sump Width: 7.5 inches
- Windage Tray Included: Yes
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23.75 x 11.5 x 9.25 inches
