Product Overview

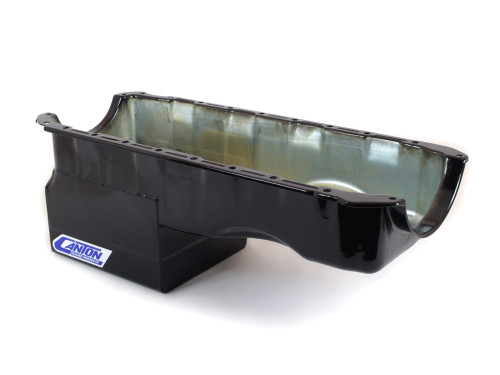

This black powder coat bracket drag race oil pan is for Dart/Rocket aluminum and iron, spread rail blocks. It has an 8-1/4" deep by 9-1/2" long by 8-1/2" wide sump with a 6 qt. system capacity. Clears a 4.25" stroke with a steel rod. Will work with stock or aftermarket starters. This pan requires one of our pickups.

Features & Benefits:

Clears 4.125" Stroke
6 qt System Capacity
Trap Door Baffle
Screen Windage Tray
Crank Scraper
Provision For Our Pan Mounted Dipstick
Magnetic Drain Plug

Associated Comments:

Additional Attributes:

GTIN: 00887753711595
Baffled: Yes
Capacity: 6 Quart System Capacity
Crank Scraper Included: Yes
Dipstick Port: Yes
Drain Plug Included: Yes
Engine: For Dart Rocket Alum and Iron Spread Rail Blocks
Feature 1: Features Competition Oil Recovery System
Feature 2: Removable Screen Windage Tray
Feature 3: Built in Crank Scraper
Feature 4: Trap Door Baffle For Oil Control
Feature 5: Provision for Canton Pan Mounted Dipstick
Feature 6: Magnetic Drain Plug
Finish: Black Powdercoat
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: No
Material: 16 Gauge Steel
Pickup Included: No
Recommended Accessory 1: 20-050 - Pickup for Small Block Standard Volume Pumps M55 & M55A
Recommended Accessory 2: 20-055 - Pickup for Small Standard Volume Pump M155 w/ 3/4" Inlet
Recommended Accessory 3: 20-080 - Pickup for Small Block High Volume Pump M55HV
Recommended Accessory 4: 20-081 - Bolt-On Pickup for Melling 105552 & 10555 Pumps
Recommended Accessory 5: 20-082 - Press-in Pickup for Melling 105552 & 10555 Pump
Recommended Accessory 6: 20-085 - Pickup for Small Block High Volume M155HV Pump w/ 3/4" Inlet
Recommended Accessory 7: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
Recommended Accessory 8: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Stoke: 4.125 inches
Sump Depth: 8.25 inches
Sump Width: 8.5 inches
Windage Tray Included: Yes
