Product Overview

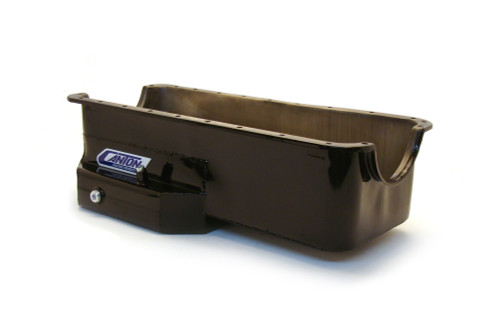

This Ford 429-460 drag race flat bottom Pro Power pan is designed for chassis without x-members or steering links under the engine. It is 7-1/2" Deep in front and 8" Deep in the rear and holds 8 qts., system capacity is 9 qts. The large oil recovery pouch requires the right side mounting bolts to be accessed through plugs in the bottom of the pan. This pan requires our 13-769 pickup. Will work with late model stock starters. Modifications needed for use with some aftermarket blocks.

Features & Benefits:

7 qt System Capacity
Pro Style Oil Recovery Pouch
Slosh Baffle
Provision For Our Pan Mounted Dipstick
Magnetic Drain Plug

Associated Comments:

Additional Attributes:

GTIN: 00887753711960
Baffled: Yes
Capacity: 9 Quart System Capacity
Crank Scraper Included: No
Dipstick Port: Yes
Drain Plug Included: Yes
Engine: For Ford 429-460 Blocks
Feature 1: Pro-Style Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
Feature 3: Triple Trap Door Baffles For Oil Control
Feature 4: Midsump Pickup Compartment
Feature 5: Provision for Canton Pan Mounted Dipstick
Feature 6: Magnetic Drain Plug
Finish: Silver Plating
Gasket or Seal Included: No
Hardware Included: No
Kicked Out: No
Material: 16 Gauge Steel
Pickup Included: No

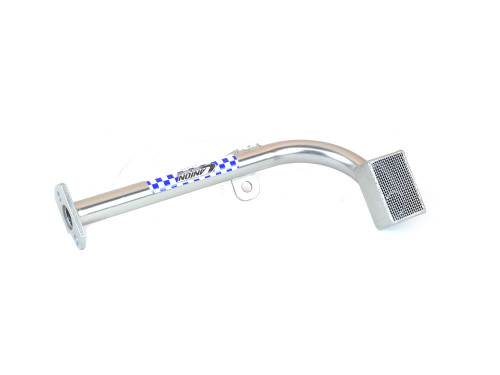

Recommended Accessory 1: 13-769 - 7/8" Dia. Pickup
Recommended Accessory 2: 20-956 - Oil Pump Pickup Stud
Recommended Accessory 3: 20-936 - One-way Screen Windage Tray
Recommended Accessory 4: 20-946 - Windage Tray Mounting Kit
Recommended Accessory 5: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 6: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 7: 21-066 - Ford 429-460 Main Support
Recommended Accessory 8: 88-750 - Big Block Ford 429-460 Four Piece Oil Pan Gasket
Stoke: 4.5 inches
Sump Depth: 8 inches
Windage Tray Included: No
