Product Overview

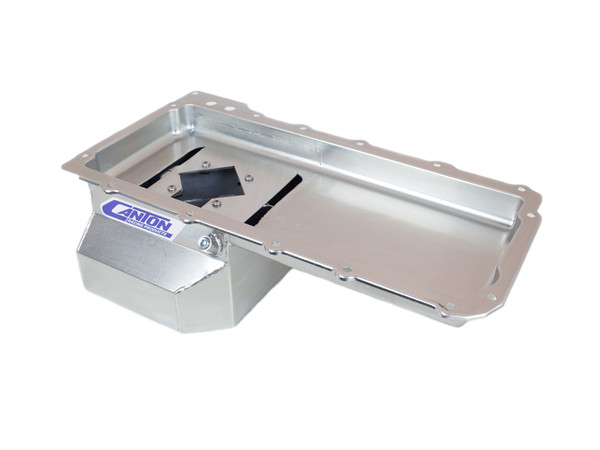

This pan is for GM LS1/LS6 powered cars used in road racing and heavy street use. Fits A,F,Y and 1970's X-body cars. Clears a 4.25" stroke with steel rods.
Features & Benefits:
- 6.5 qt System Capacity
- Diamond shape road race baffle with four Trap Door Baffles.
- Removable windage/Slosh Baffle
- Crank Scraper
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753712325
- Baffled: Yes
- Capacity: 6.5 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Engine: For GM LS Blocks
- Feature 1: Trap Door Baffle for Oil Control
- Feature 2: Bolt in Slosh Baffle
- Feature 3: Works with OEM Rear Sump Windage Tray GM Part # 12558253
- Feature 4: Provision for Pan Mounted Dipstick
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 21-870 - LS Flywheel Cover
- Recommended Accessory 2: 15-275 - GM LS1/LS6 Pickup for 15-274 Pan
- Recommended Accessory 3: 22-631 - GM LS Pan Mounted Spin-on Filter Mount
- Recommended Accessory 4: 22-302 - GM LS1 Oil Pan Stud Kit
- Recommended Accessory 5: 22-620 - GM LS Remote Filter Mount
- Recommended Accessory 6: 22-630 - GM LS Remote Oil Filter Adapter
- Recommended Accessory 7: 22-632 - LS 90 Degree Remote Filter Adapter
- Windage Tray Included: No
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26.5 x 13.5 x 10 inches
Pan Install - Standard Part B
