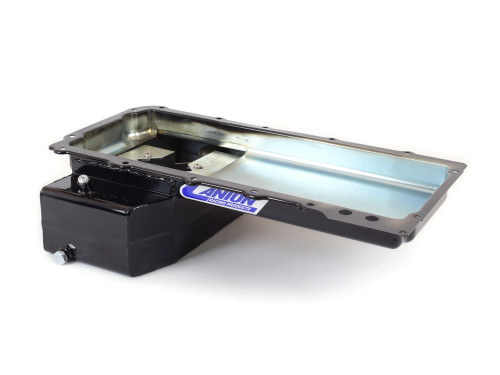

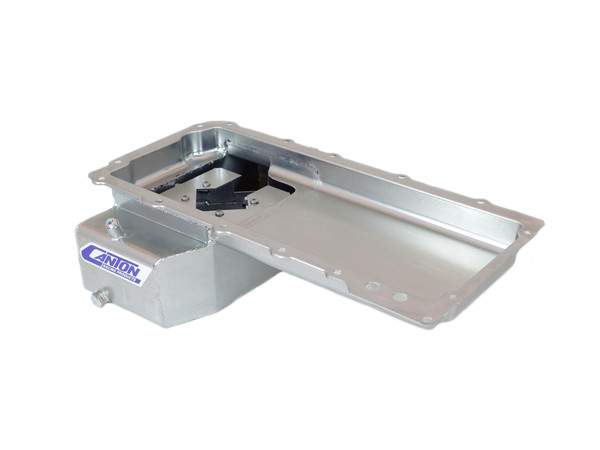

Canton 15-276 Oil Pan GM LS1 LS6 5-5/8" Deep Front Sump Road Race and Drift Pan - 15-276

Canton?s new 15-276 front sump road race/drift car oil pan is designed for GM LS1/LS6 powered cars that require a shallow front sump oil pan. This pan is designed to use the GM pickup part number #12572654 from the 04-06 GTO. It?s diamond shaped baffle with 4 trap doors and removable windage/anti-slosh baffle provide the best oil control under demanding street and track conditions. With provisions for a pan mounted dipstick and 20 mm oil level sensor along with a 6.5 quart system oil capacity.

Features & Benefits:

• 6.5 qt System Capacity
• 4.25" Stroke Clearance
• Diamond Shape Trap Door Baffle
• Bolt in Slosh Baffle
• 20 mm bung for low oil warning sensor (22-405 required if not used)
• Provision for our 1/4 NPT pan mounted dipstick
• Magnetic Drain Plug

Associated Comments:

• N/A

Additional Attributes:

• GTIN: 00887753712356
• Baffled: Yes
• Capacity: 6.5 Quart System Capacity
• Crank Scraper Included: No
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Engine: For GM LS Blocks
• Feature 1: Trap Door Baffle for Oil Control
• Feature 2: Bolt in Slosh Baffle
• Feature 3: Works with OEM Rear Sump Windage Tray GM Part # 12558253
• Feature 4: Provision for Pan Mounted Dipstick
• Feature 5: 20mm Fitting for GM Low Oil Warning Sender
• Finish: Silver Plating
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: Yes
• Material: 16 Gauge Steel
• Pickup Included: No
• Recommended Accessory 1: 21-870 - LS flywheel cover
• Recommended Accessory 10: 20-902 - Front Sump LS Screen Windage Tray
• Recommended Accessory 11: 20-902P - Front Sump LS Louvered Windage Tray
• Recommended Accessory 2: 22-302 - GM LS Oil Pan Stud Kit
• Recommended Accessory 3: 22-630 - LS1 Remote Filter Adapter
• Recommended Accessory 4: 22-632 - LS1 90 Degree Remote Filter Adapter
• Recommended Accessory 5: 22-631 - LS1 Pan Mounted Spin-on Filter Mount
• Recommended Accessory 6: 22-620 - Billet Aluminum Spin-on Filter Adapter
• Recommended Accessory 7: 22-405 - 20mm Plug(needed if Not using low oil sender
• Recommended Accessory 8: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 9: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
• Windage Tray Included: No

Extended Information:

• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 27 x 16.5 x 9.5 inches
