Product Overview

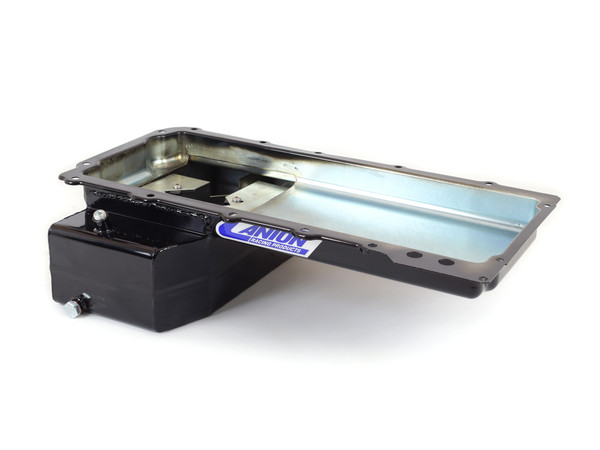

Canton?s new 15-276 black powdercoated front sump road race/drift car oil pan is designed for GM LS1/LS6 powered cars that require a shallow front sump oil pan. This pan is designed to use the GM pickup part number #12572654 from the 04-06 GTO. It?s diamond shaped baffle with 4 trap doors and removable windage/anti-slosh baffle provide the best oil control under demanding street and track conditions. With provisions for a pan mounted dipstick and 20 mm oil temperature sensor along with a 6.5 quart system oil capacity.
Features & Benefits:
- 6.5 qt System Capacity
- 4.25" Stroke Clearance
- Diamond Shape Trap Door Baffle
- Bolt in Slosh Baffle
- 20 mm bung for low oil warning sensor (22-405 required if not used)
- Provision for our 1/4 NPT pan mounted dipstick
- Magnetic Drain Plug
- Black Powder Coat
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753712363
- Baffled: Yes
- Capacity: 6.5 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: For GM LS Blocks
- Feature 1: Trap Door Baffle for Oil Control
- Feature 2: Bolt in Slosh Baffle
- Feature 3: Works with OEM Rear Sump Windage Tray GM Part # 12558253
- Feature 4: Provision for Pan Mounted Dipstick
- Feature 5: 20mm Fitting for GM Low Oil Warning Sender
- Finish: Black Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 21-870 - LS flywheel cover
- Recommended Accessory 10: 20-902 - Front Sump LS Screen Windage Tray
- Recommended Accessory 11: 20-902P - Front Sump LS Louvered Windage Tray
- Recommended Accessory 2: 22-302 - GM LS Oil Pan Stud Kit
- Recommended Accessory 3: 22-630 - LS1 Remote Filter Adapter
- Recommended Accessory 4: 22-632 - LS1 90 Degree Remote Filter Adapter
- Recommended Accessory 5: 22-631 - LS1 Pan Mounted Spin-on Filter Mount
- Recommended Accessory 6: 22-620 - Billet Aluminum Spin-on Filter Adapter
- Recommended Accessory 7: 22-405 - 20mm Plug(needed if Not using low oil sender
- Recommended Accessory 8: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 9: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Windage Tray Included: No
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 27 x 16.5 x 9.5 inches
