Product Overview

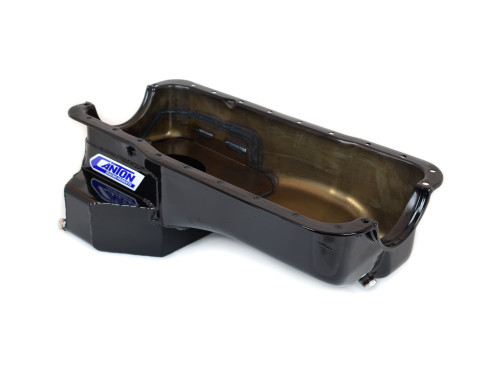

This "T" style rear sump oil pan is for Ford 289-302 blocks in Fox Body Mustangs. It has a 7-1/2" deep by 8" long by 13-1/2" wide sump and a 7 quart system capacity. This pan can be used with a stock rear sump Mustang/T-Bird pickups OR our replacement pickup #15-641. Some long tube headers require modification. Note: Modification needed for manual transmission 94-95 Mustangs for clutch cable clearance.
Features & Benefits:
- 7 qt System Capacity
- Retains Stock Depth
- Crank Scraper
- Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753712943
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 7 qt System Capacity
- Feature 2: Retains Stock Depth
- Feature 3: Crank Scraper
- Feature 4: Slosh Baffle
- Feature 5: 1/2" NPT Temperature Bung
- Feature 6: Provision For Our Pan Mounted Dipstick
- Feature 7: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-641 - Pickup
- Recommended Accessory 2: 20-950 - Pickup Mounting Stud for Ford 302 Based Engines
- Recommended Accessory 3: 20-953 - Pickup Mounting stud for Ford 302R Based Engines
- Recommended Accessory 4: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 5: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 6: 88-602 - Small Block Ford 289-302 One Piece Oil Pan Gasket
- Stoke: 3.4 inches
- Sump Depth: 7.5 inches
- Sump Width: 13.5 inches
- Windage Tray Included: No
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
Pan Install - Standard Part B
