Product Overview

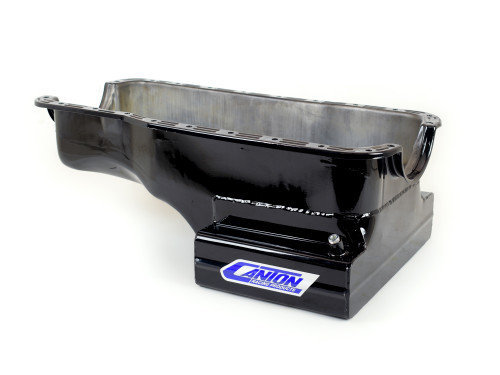

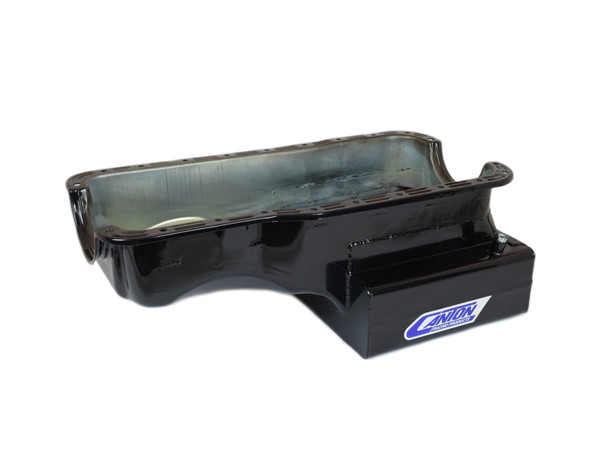

This black powder coated front sump road race pan is for Ford 351 Windsor blocks. It has an 8" deep, 13-1/2" wide front sump with a 9 qt. system capacity. Will work with stock & aftermarket starters. This pan requires our 15-661 pickup.
Features & Benefits:
- 9 qt System Capacity
- Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Crank Scraper
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753713179
- Baffled: Yes
- Capacity: 9 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 9 qt System Capacity
- Feature 2: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Feature 3: Crank Scraper
- Feature 4: Removable Windage/Anti-Slosh Baffle
- Feature 5: 1/2" NPT Temperature Bung
- Feature 6: Provision For Our Pan Mounted Dipstick
- Feature 7: Magnetic Drain Plug
- Finish: Black Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-661 - Pickup with 3/4" Dia. Inlet
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 4: 88-650 ? Small Block Ford 351W Four Piece Oil Pan Gasket
- Stoke: 4.0 inches
- Sump Depth: 8 inches
- Sump Width: 13.5 inches
- Windage Tray Included: No
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
