Product Overview

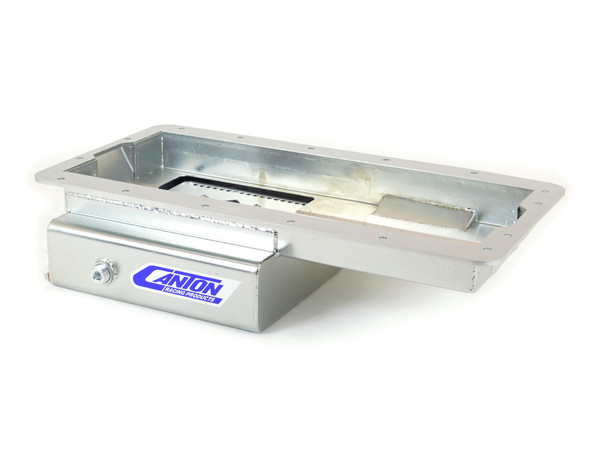

This Ford 5.0 Coyote oil pan is designed for kit car applications where ground clearance is limited. Like all Canton pans it is built with heavy gauge steel and is tig welded for strong leak free performance. Requires part #15-737 Rear Sump 5.0 Coyote Pickups. For Gen 3 Coyotes use part #20-937P36 Coyote Gen 3 Louvered Tray Pickup Combo For Oil Pan 15-736.
Features & Benefits:
- 1/2" NPT Temperature Bung
- Removable Windage/Anti-Slosh Baffle
- 20mm Bung for Low Oil Warning Sender
- Designed for 5.0 Coyote Blocks
- Made In USA
- Tig Welded
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753713384
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Feature 1: 1/2" NPT Temperature Bung
- Feature 2: Removable Windage/Anti-Slosh Baffle
- Feature 3: 20mm Bung for Low Oil Warning Sender
- Feature 4: Designed for 5.0 Coyote Blocks
- Feature 5: Made In USA
- Feature 6: Tig Welded
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-737 - Rear Sump 5.0 Coyote Pickup
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 4: 20-937P36 Coyote Gen 3 Louvered Tray Pickup Combo For Oil Pan 15-736
- Windage Tray Included: No
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
Pan Install - Standard Part B
