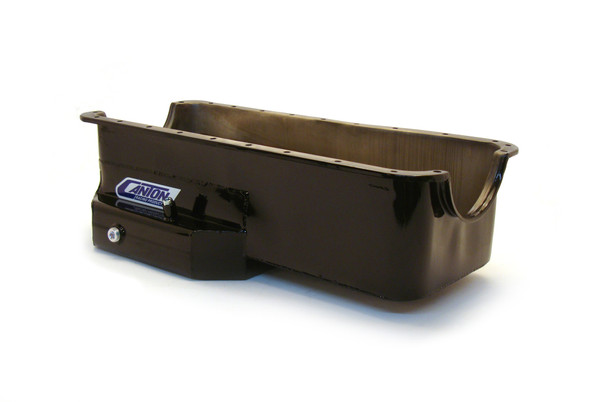

Canton 15-766 Oil Pan For Ford 429 460 Rear T Sump Road Race Cobra Pan - 15-766

This "T" style rear sump oil pan is designed for Ford 429/460 blocks in Cobras. It has a 7.5? deep, 13? wide by 12? long sump, with an 8 qt system capacity. This pan requires our 15-767 pickup.

Features & Benefits:

• 8 qt System Capacity
• Shallow "T" Sump Pan Fully Baffled For Road Race
• Diamond Shape Road Race Baffle Assembly With Four Trap Doors
• Crank Scraper
• Removable Windage/Anti-Slosh Baffle
• 1/2" NPT Temperature Bung
• Provision For Our Pan Mounted Dipstick
• Magnetic Drain Plug
• Gloss Black Powder Coat Finish for Maximum Durability

Associated Comments:

• N/A

Additional Attributes:

• GTIN: 00887753713520
• Baffled: Yes
• Capacity: 8 Quart System Capacity
• Crank Scraper Included: No
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Feature 1: 8 qt System Capacity
• Feature 2: Shallow "T" Sump Pan Fully Baffled For Road Race
• Feature 3: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
• Feature 4: Crank Scraper
• Feature 5: Removable Windage/Anti-Slosh Baffle
• Feature 6: 1/2" NPT Temperature Bung
• Feature 7: Provision For Our Pan Mounted Dipstick
• Feature 8: Magnetic Drain Plug
• Feature 9: Gloss Black Powder Coat Finish for Maximum Durability
• Finish: Black Powdercoat
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: Yes
• Material: 16 Gauge Steel
• Pickup Included: No

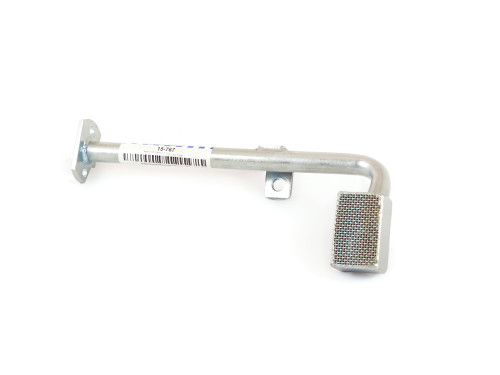

• Recommended Accessory 1: 15-767 - Pickup for 15-766 pan and M-84DHV Pump
• Recommended Accessory 2: 21-066 - Canton 429-460 Steel Main Support
• Recommended Accessory 3: 20-966 - Ford 429-460 Main Support Mounted Windage Tray
• Recommended Accessory 4: 20-956 - Pickup Mounting Stud for 429-460 Based Engine
• Recommended Accessory 5: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 6: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T.
• Recommended Accessory 7: 88-750 ? Big Block Ford 429-460 Four Piece Oil Pan Gasket
• Stoke: 4.5 inches
• Windage Tray Included: No

Extended Information:

• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 14 x 10 inches
