Product Overview

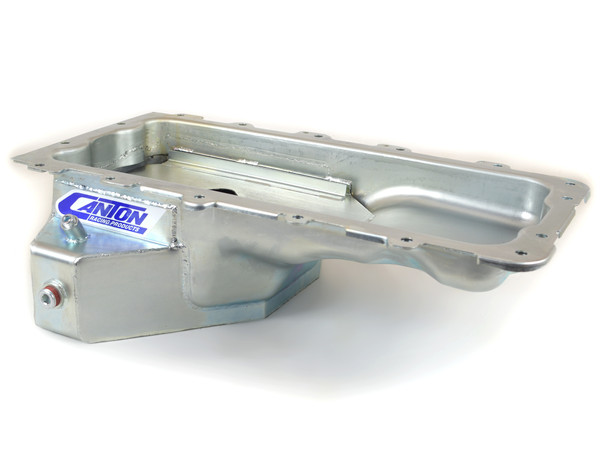

This ?T? style modular rear sump oil pan is designed for Ford 4.6L/5.4L blocks in ?96-?04 & ?05-up Mustangs. It has 6-1/4" deep, 12-3/4" wide by 9-1/4" long sump and a 7 quart system capacity. Use Your OEM pickup for this pan.
Features & Benefits:
- 7 qt System Capacity
- Slosh Baffle
- 1/2" NPT Temperature Bung
- Magnetic Drain Plug
- Provision for a pan mounted dipstick
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753713612
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Feature 1: 7 qt System Capacity
- Feature 2: Slosh Baffle
- Feature 3: 1/2" NPT Temperature Bung
- Feature 4: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-939 - Ford 4.6L/5.4L Screen Windage Tray
- Recommended Accessory 2: 88-780 - Modular Ford 4.6L/5.4L One Piece Oil Pan Gasket
- Stoke: 106MM
- Sump Depth: 6.25 inches
- Sump Width: 12.75 inches
- Windage Tray Included: No
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
Pan Install - Standard Part B
