Product Overview

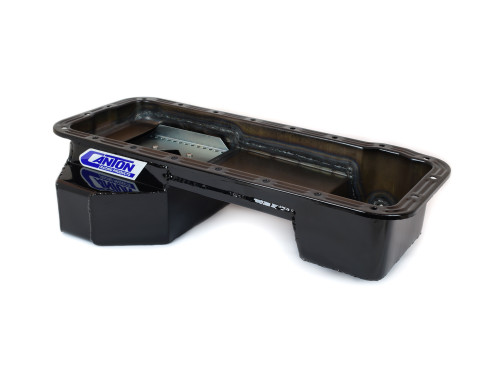

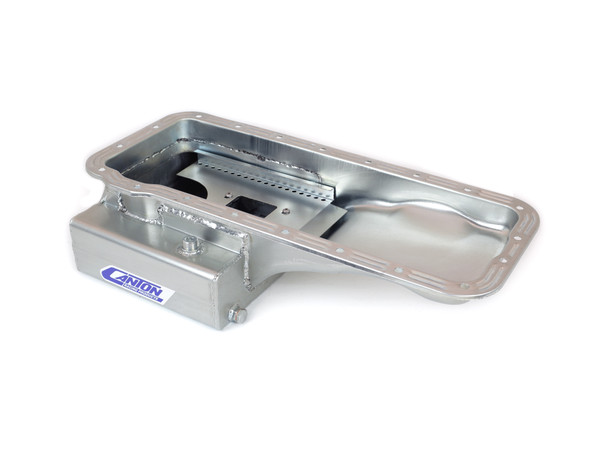

This front sump Ford 332-428FE road race pan is ideal for Mustangs or Cobra Kit Cars. It has a 6" deep, 13" wide by 10" long sump for an 8 quart system capacity. "T" style sump to increase capacity without losing ground clearance. This pan requires our 15-821 pickup for Melling oil pump M57HV.
Features & Benefits:
- 8 qt System Capacity
- Diamond Shape Road Race Baffle Assembly With Six Trap Doors
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753713797
- Baffled: Yes
- Capacity: 8 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 8 qt System Capacity
- Feature 2: Diamond Shape Road Race Baffle Assembly With Six Trap Doors
- Feature 3: Removable Windage/Anti-Slosh Baffle
- Feature 4: 1/2" NPT Temperature Bung
- Feature 5: Provision For Our Pan Mounted Dipstick
- Feature 6: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No

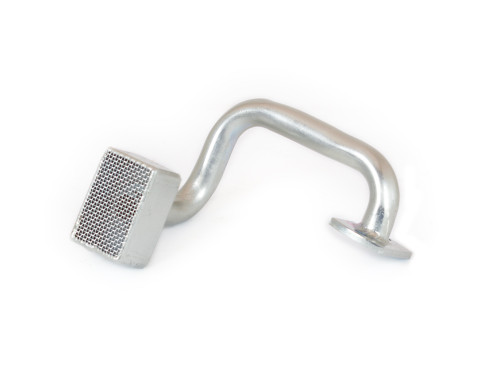

- Recommended Accessory 1: 15-821 - Pickup 3/4" Dia. Inlet
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 4: 20-938 - Ford 332-428FE Screen Windage Tray
- Stoke: 4.125 inches
- Sump Depth: 6 inches
- Sump Width: 13 inches
- Windage Tray Included: No
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
Pan Install - Standard Part B
