Product Overview

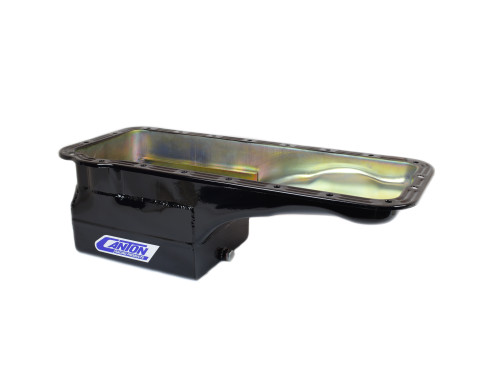

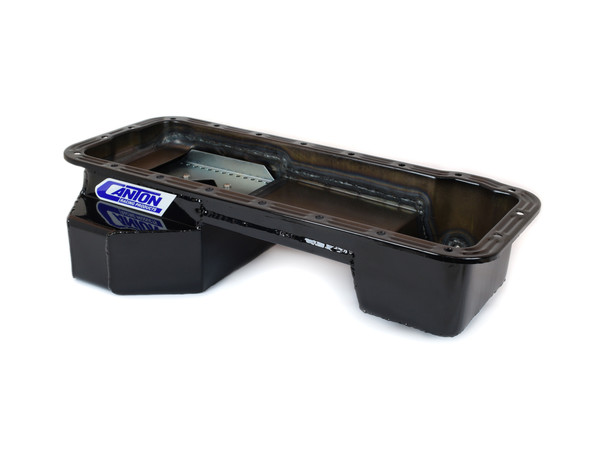

This "T" style Ford 332-428 FE rear sump black powdercoated oil pan is is designed for early Mustangs with Rack and Pinion conversion front ends installed, or 79 to 93 Mustang, 80-97 T-Birds, or Rear Sump Cobra Kit Cars. It has a 6? deep, 13? wide by 8? long sump with a 7 quart system capacity. This pan requires our 15-875 pickup.
Features & Benefits:
- 7 qt System Capacity
- Diamond Shape Road Race Baffle Assembly With Six Trap Doors
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753713865
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 7 qt System Capacity
- Feature 2: Diamond Shape Road Race Baffle Assembly With Six Trap Doors
- Feature 3: 1/2" NPT Temperature Bung
- Feature 4: Provision For Our Pan Mounted Dipstick
- Feature 5: Magnetic Drain Plug
- Finish: Black Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-875 - Pickup for FE 15-784 Pan
- Recommended Accessory 2: 20-938 - Ford 332-428 FE Screen Windage Tray
- Recommended Accessory 3: 88-800 ? Ford FE Oil Pan Gasket
- Recommended Accessory 4: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 5: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 6: 20-953 - Pickup Main Cap Mounting Stud for Ford 332-428 FE Based Engines
- Stoke: 4.125 inches
- Windage Tray Included: No
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26.5 x 13.25 x 10.25 inches
