Product Overview

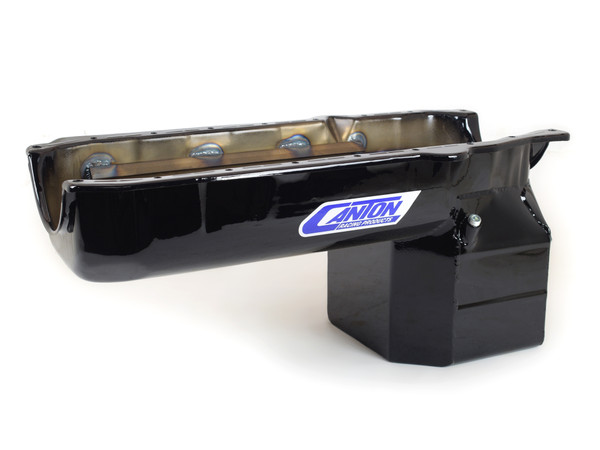

This SBC S-10 V-8 conversion oil pan is for '86 and newer blocks with a one piece seal. It is designed to install a Chevy small block into the popular S-10 / S-15 pickup & Blazer 4x4 chassis when used in conjunction with Hooker Mount #12610 and Hooker Headers #2839. The 10" deep sump gives a 7 quart system capacity. This pan requires a M210S or M211S pickup.
Features & Benefits:
- 7 qt System Capacity
- Crank Scraper
- Slosh Baffle
- Built In Screen Windage Tray
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753714084
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 7 qt System Capacity
- Feature 2: Crank Scraper
- Feature 3: Slosh Baffle
- Feature 4: Built In Screen Windage Tray
- Feature 5: Provision For Our Pan Mounted Dipstick
- Feature 6: Magnetic Drain Plug
- Finish: Black Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: Steel
- Pickup Included: No
- Recommended Accessory 1: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 2: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 88-100T ? SBC 86+ Oil Pan Gasket
- Stoke: 3.875 inches
- Sump Depth: 10 inches
- Sump Width: 7.75 inches
- Windage Tray Included: Yes
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
