Product Overview

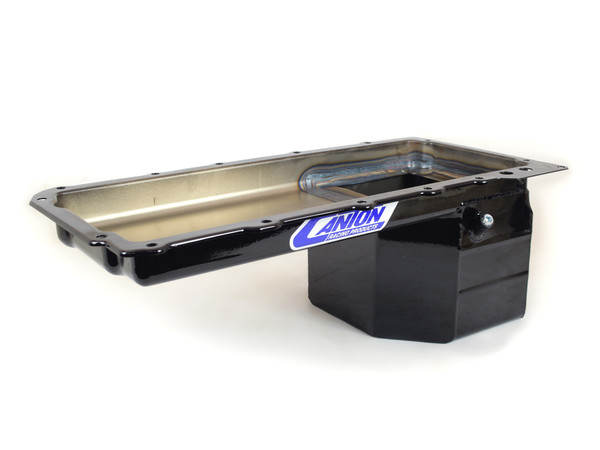

This LS S-10 V-8 conversion oil pan is designed to install a Chevy LS into the popular S-10 / S-15 pickup & Blazer 4x4 chassis. The 8" deep sump gives a 7 quart system capacity. This pan requires a 15-279 p/u.
Features & Benefits:
- 7 qt System Capacity
- Clears 4.25" Stroke
- Work with OEM slosh tray part # 12558253
- 14 Gauge Steel
- Black Powdercoat Finish
- Provision for Pan Mounted Dipstick
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753714091
- Baffled: No
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Engine: Chevy LS
- Feature 1: Fits LS Swaps for S10 / S15 & Blazer 4 x 4
- Feature 2: Magnetic Drain Plug
- Feature 3: Works with OEM Rear Sump Windage Tray GM Part # 12558253
- Feature 4: Provision for Pan Mounted Dipstick
- Feature 5: Clears 4.25" Stroke
- Feature 6: 7 qt System Capacity
- Finish: Black Gloss Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 14 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 16-279 - GM LS1/LS6 Pickup for 16-279 Pan
- Recommended Accessory 2: 21-870 - LS flywheel cover
- Recommended Accessory 3: 22-302 - GM LS Oil Pan Stud Kit
- Recommended Accessory 4: 22-630 - GM LS Pan Mounted Filter Adapter
- Recommended Accessory 5: 22-631 - GM LS Remote Oil Filter Adapter
- Recommended Accessory 6: 22-632 - LS 90 Degree Remote Filter Adapter
- Recommended Accessory 7: 20-850 - Steel Tube Universal Dipstick
- Recommended Accessory 8: 20-854 - Braided Steel Flexible Dipstick
- Windage Tray Included: No
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 22 x 8 x 11 inches
Pan Install - Standard Part B
