Product Overview

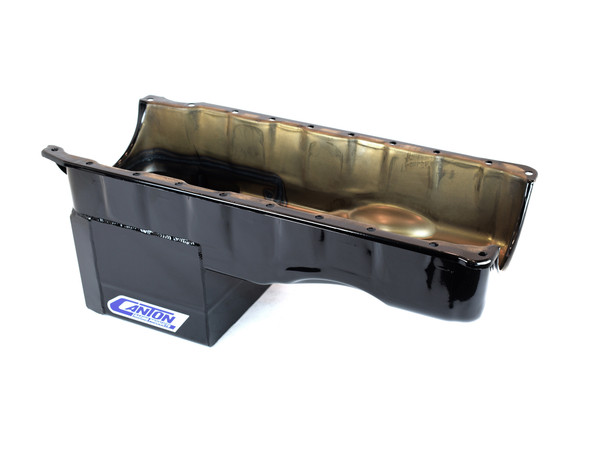

This oil pan is designed for Mark 5-6 Big Block Chevys in 67-01 Chevy 4x4 chassis. It's 10? deep sump design provides superior oil control and an 8 quart system capacity. This pan requires our 16-331 pick up.
Features & Benefits:
- 8 qt System Capacity
- Crank Scraper
- Slosh Baffle
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
- Gloss Black Powder Coat Finish
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753714121
- Baffled: Yes
- Capacity: 8 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 8 qt System Capacity
- Feature 2: Crank Scraper
- Feature 3: Slosh Baffle
- Feature 4: Provision For Our Pan Mounted Dipstick
- Feature 5: Magnetic Drain Plug
- Feature 6: Gloss Black Powder Coat Finish
- Finish: Black Gloss Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 14 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 16-331 - BBC Pickup for M77/M77HV Oil Pumps
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Stoke: 4.5 inches
- Windage Tray Included: No
Extended Information:
- Emissions : 1
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26.5 x 13.25 x 10.25 inches
Pan Install - Standard Part B
